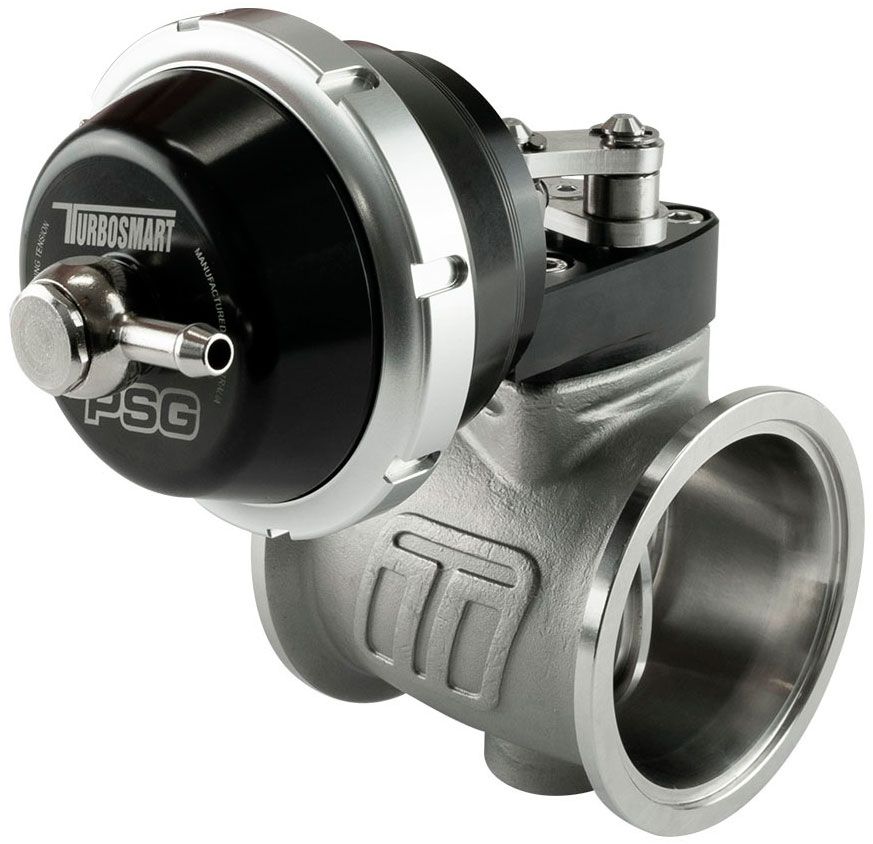

PSG50 STRAIGHT GATE 50MM BLACKEXTERNAL WASTEGATE VACUUM BASE

Description

The StraightGate50 from Turbosmart is the world’s highest-flowing external wastegate! The StraightGate50 is a zero-offset butterfly-style wastegate thatallows enormous flow and almost linear control, and unparalleled boost control throughout the entire operating range.
The Vacuum-Based Pneumatic StraightGate50 takes the Multiple Award Winning SG50 and simplifies control via a traditional vacuum-based actuator. The Self-Balancing nature of the StraightGate50 means a huge tuning window of over 5 times base spring pressure can be obtained!Vacuum-Based Boost Control also allows the setup of advanced gate strategies, including being utterly open at cold start for increased emissions compliance, as well as working with some OE factory boost control systems where being retro-fitted, equipped initially with vacuum-based Internal Wastegate Actuators.
The Turbosmart StraightGate50 has been designed from the ground up & validated in-house to create a new level of control and flow, never seen in a wastegate before. The zero-offset butterfly valve issubjected to exhaust drive pressure equally on both halves of the valve, which pivots centrally, resulting ina self-balanced valve against any drive pressure. This self-balancing means less workis required to act against even the highest drive pressures, and a wider tuning window is possible, no matter how the valve is actuated. Theincreased flow is achieved through the efficiency of a straight-through valve versus a poppet-style valve where theexhaust gas must be turned 90 degrees by the valve.
Features
50mm (1.97in) Butterfly Style Zero-Offset Valve
383.9 CFM / 10.87m3per minute flow
StainlessSteel (630) Butterfly and shaft
Stainless Steel (347) Main Body
StainlessSteel (Heat Treated 431) V-Band Clamps
Aluminium (6262 T6 Anodised) Bracket & Actuator
Turbosmartunique Locking Collar Ring
Base Spring Options from6psi to 42psi
Suitable for Single or Twin Port Boost-Based Control
Stainless Steel (N60) Linkages & Control Arm
