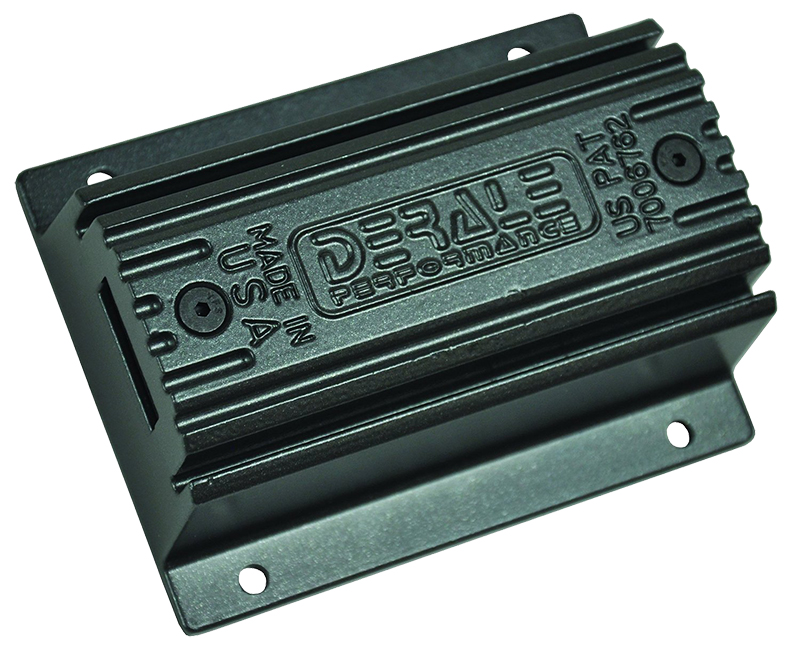

PWM FAN CONTROLLER STICK-ON PROBE

Description

Derale Performance is
changing the rules of engine
temperature control with Smart
Technology brought to your
car’s cooling system through
Derale’s Patented PWM Fan
Controller.

Historically
, cooling fans run at 100%,
even when less airflow is
needed, constantly turning on
and off as the engine
temperature changes. This
REACTION based temperature
control system causes constant
amperage spikes, excessive
noise and premature wear. The
Derale PWM fan controller
continuously monitors your
engine’s temperature,
therefore CONTROLLING the
temperature and increasing the
vehicles cooling efficiency,
while reducing the amps used
to do so.

Here’s how it
works; The controller monitors
your engine temperature via
the cool side of the radiator,
therefore providing a more
accurate reading for your
cooling system. Using Soft
Start Technology, fans ramp up
slowly which eliminates
harmful AMP spikes. The unit
will continuously monitor your
engine’s temperature and
operate the fans at the
optimum fan rate as needed
between 1 to 100%. The net
result; the electric fans
often only run between 40-60%
to keep your engine cool.
Additional benefits include,
reduced fan speeds which means
reduced fan noise, which tends
to compete with that sweet
sound of your
engine!

This multi-fan
controller has a built-in A/C
Over-ride circuit and is
designed to control as many 12
volt brushed electric fans as
desired, up to 65 Amps
combined. Even better,
installation and calibration
is a snap. It simply wires
in-between your vehicles
battery and electric fans;
adding in a simple multi-meter
and a twist of the temp
adjuster, allows you to
program the temperature to
maximize your car’s cooling
system.

Specifications

• Amp
  Rating: 65 amp
• Width:
  3 1/2″
• Length:
  4-7/16″
• Height: 1
  3/4″

Features

• Pulse Width Modulation
  controls fan(s) speed from
  0-100%
• Constantly
  adjusts fans speed to maintain
  the desired
  temperature
• Controls
  multiple electric fans up to
  65 amp
  capacity
• Finned,
  aluminum
  housing
• Includes
  automatic resetting circuit
  breaker
• Air
  Conditioning overide circuit
  built-in
