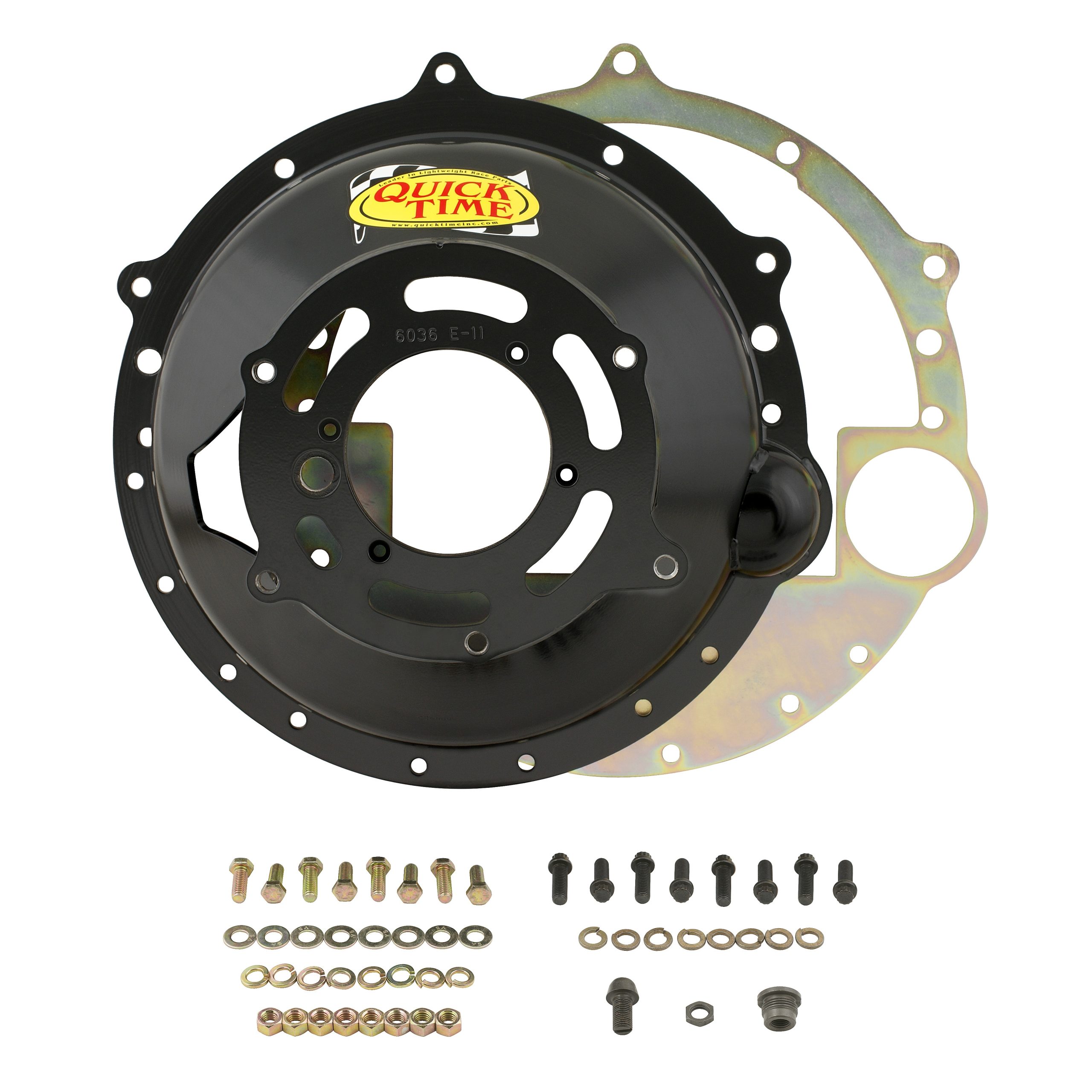

QUICKTIME BELLHOUSING GM LS TO MUNCIE RICHMOND TKO 500-600

Description

Product
Description:

This bellhousing fits Chevy
LS to Muncie/Jerico style
transmission.
Built
from high grade steel – Work
hardens to over 80,000 PSI
strength. Over 2 times the
strength of any other steel
bellhousing.

Features & Benefits:

Built from
high grade steel – work
hardened to over 80,000 PSI
strength. Over two times the
strength of typical steel
bellhousings. Bellhousing
cone is spin formed not
rolled or stamped. This
process provides consistent
wall thickness and incredible
strength. Laser cut
components are added to
assembly and CNC machined
with extreme precision to
provide a bellhousing that is
parallel & centered to within
.003″. Precision
manufacturing method permits
QuickTime bellhousings to be
the most dimensionally stable
bellhousing available,
permits less drivetrain wear.
Designed to be the lightest,
strongest and most accurate
bellhousing available.

Specifications:

• Height:
  6.100″
• Trans. Bore
  Diameter: 4.685″
• Engine: Chev LS
• Clutch Diameter: 11″
• Flywheel: 153 & 168 tooth
• Weight: 18lbs
• STD LH Fork Hydraulic
  Bearing Only
• Starter:
  OE

Transmission Application:

• Bert
  Racing
• Brin Racing
• Falcon
• Jerico
• Muncie
• Richmond
• Saginaw
• T10
• T5 Chev
• TKO 500 / 600 Chev
