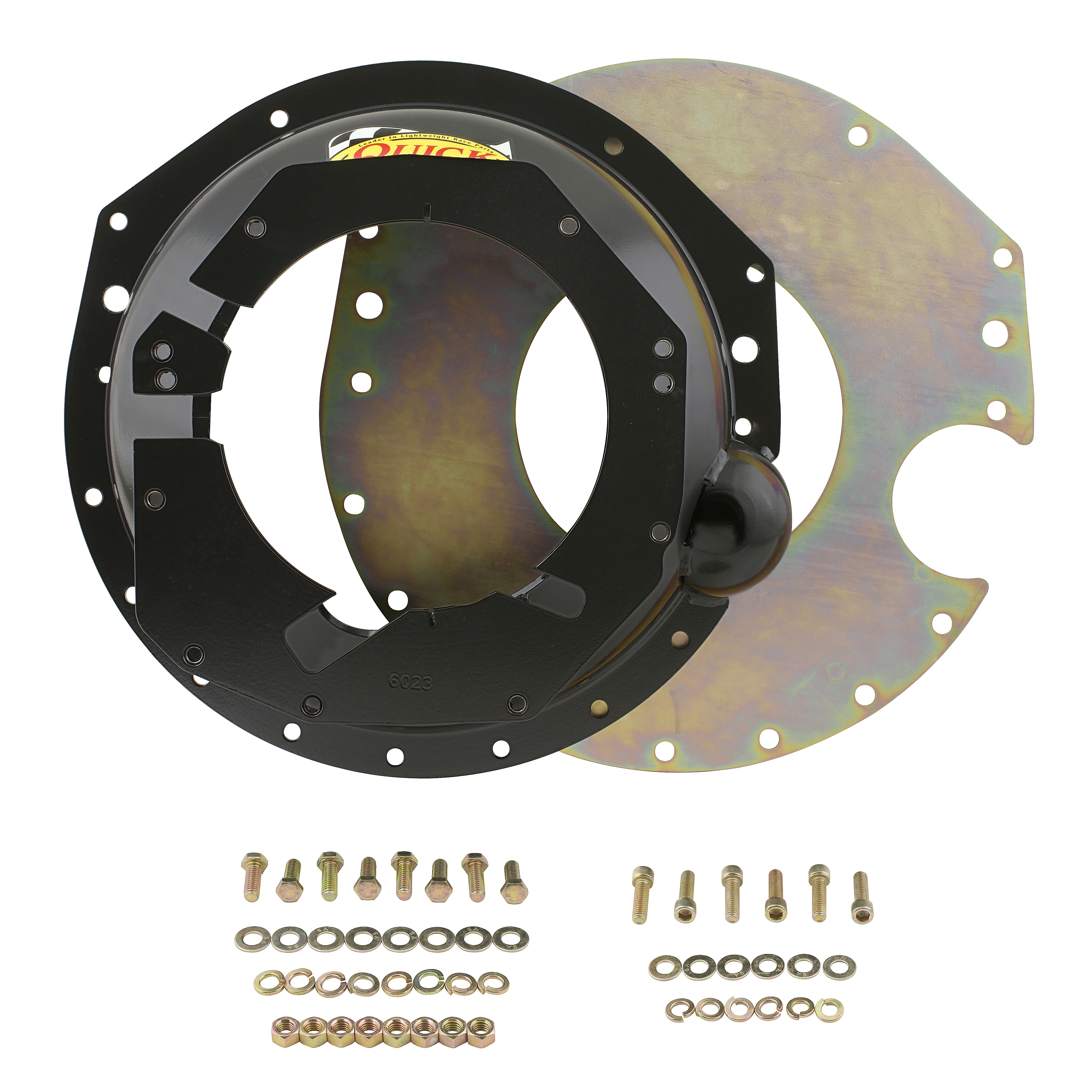

QUICKTIME BELLHOUSING SBC BBC SUIT LS1 T56 & T56 MAGNUM SFI
QUICKTIME BELLHOUSING SBC BBC SUIT LS1 T56 & T56 MAGNUM SFI
$2,189.38
Description
Product Description:
This bellhousing fits small block/BB Chevy to T56 LS-1 Chevy transmission.
Built from high grade steel – Work hardens to over 80,000 PSI strength. Over 2 times the strength of any other steel bellhousing.
Features & Benefits:
Built from high grade steel – work hardened to over 80,000 PSI strength. Over two times the strength of typical steel bellhousings. Bellhousing cone is spin formed not rolled or stamped. This process provides consistent wall thickness and incredible strength. Laser cut components are added to assembly and CNC machined with extreme precision to provide a bellhousing that is parallel & centered to within .003″. Precision manufacturing method permits QuickTime bellhousings to be the most dimensionally stable bellhousing available, permits less drivetrain wear. Designed to be the lightest, strongest and most accurate bellhousing available.
Specifications:
Height: 5.950″
Trans. Bore Diameter: N/A
Engine: Small Block Chev, Big Block Chev
Clutch Diameter: 11″
Flywheel: 153 & 168 tooth
Weight: 22lbs
Hydraulic Bearing Only
Starter: OE
Transmission Application:
T56 Chev LS1
T56 Magnum
Additional information
| Weight | 16.4100 kg |
|---|---|
| Dimensions | 47.50 × 21.10 × 47.20 cm |
| Category list | |
| Brand | Quick Time |
