RB30 +20 PISTON -9CC TURBO 86.5mm 1.270 C/H ASYMMETRICAL
RB30 +20 PISTON -9CC TURBO 86.5mm 1.270 C/H ASYMMETRICAL
$1,835.41
Description

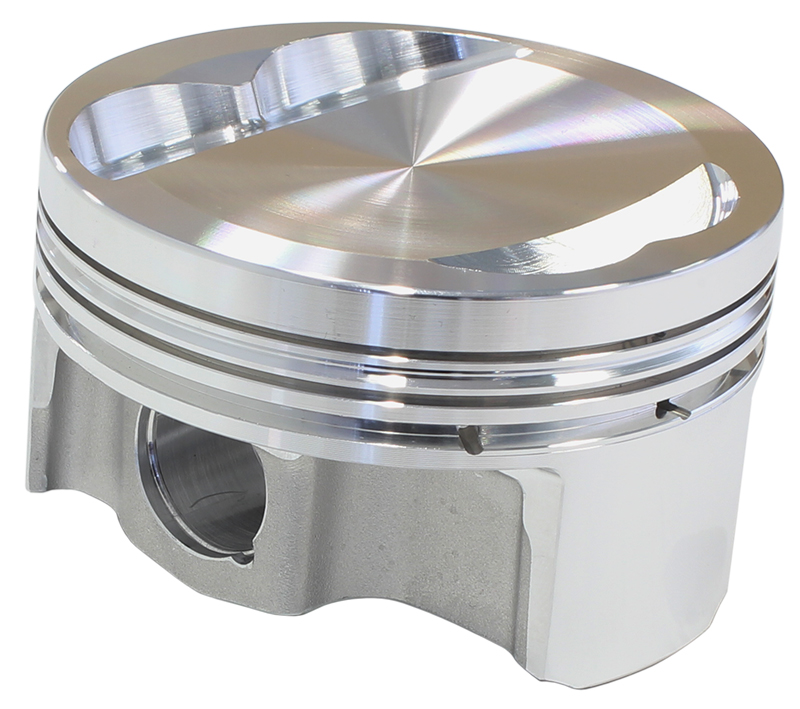

Asymmetrical RB30 Piston
Piston side loads increase with boostpressure, longer stroke crankshafts and even aftermarket camshafts! JE Pistons new asymmetrical forging design maintains a larger skirt aera on the heavily stressed major thrust side, while reducing friction with a smaller skirt aera on the minor thrust side. the result is a high strength, lightweight piston that significantly reduces frictionin your engine!
Includes:
Spiro Lock: 827-263-MW
Straight Wall Pin: 827-2250-15-51C
1.0 x 1.2 x 2.8mm Nitrite rings
Specifications:
Part #: J310988
CID: 3.0L
Bore: 3.405 (86.5mm)
Stroke: 3.346
Rod Length: 6.000
Compression Height: 1.270
Dome Volume: -9cc
Gram Weight:
Footnote: .827Pin Diameter,
Oversize: 0.020
Recommended RingSet (Check Proseal listing to determine oil ring tension): JG1001-3405
Additional information
| Weight | 2.0410 kg |
|---|---|
| Dimensions | 30.50 × 30.50 × 15.20 cm |
| Category list | |
| Brand | Je Pistons |
