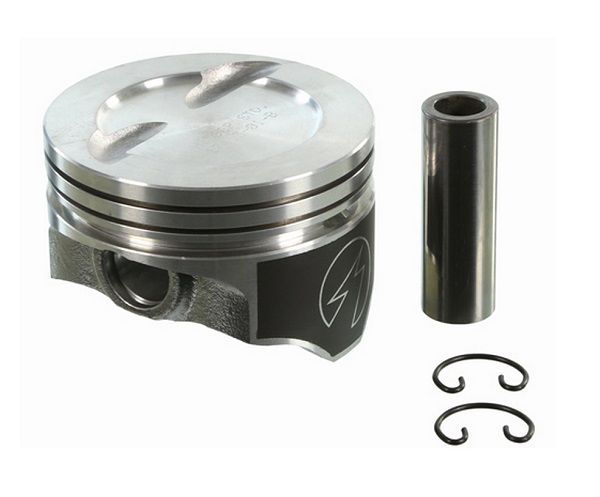

SBC 383 CHEV DISH TOP PISTON 4.060 BORE 5.7 RODS -12.5CC

Description

Available on both
hypereutectic and POWERFORGED
pistons, DUROSHIELD is an
exclusive moly-graphite skirt

coating that extends
engine life and essentially
eliminates scuffing. This
technologically advanced
coating is precisely applied
to the piston through a
computer-controlled process.

DUROSHIELD
skirt coated pistons:

• Reduce friction
  for increased fuel economy
  and horsepower
• Essentially eliminate
  scuffing and wear
• Prevent damage from
  inadequate lubrication,
  especially at start-up
• Improve cylinder sealing
  for less blow-by and more
  power
• Require no
  increase in skirt clearance

Piston
Specifications :

• CID: 389
• Bore: 4.060
• Stroke:
  3.750
• Rod Length:
  5.700
• Compression
  Height: 1.425
• Compression Ratio with 64cc
  chamber volume: 9.79
• Compression Ratio with 72cc
  chamber volume: 9.08
• Compression Ratio with 76cc
  chamber volume: 8.76
• Dome Volume: -12.0cc
• Pin Type: Press or float
• Recommended Ring Set:
  Moly – SPE251K 060, STD Fit –
  SPR9903 060, File Fit –
  SPR9343 065
• Coated
  skirt
