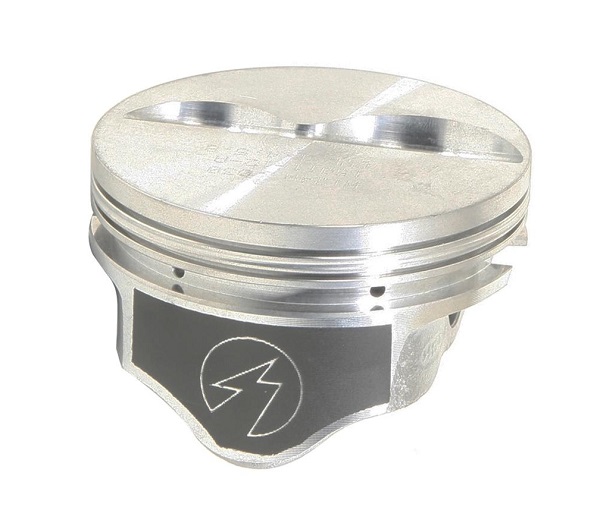

SBC 383 CHEV FLAT TOP PISTONS 4.060 BORE 6.00 RODS -5CC

Description

These ruggedly durable
pistons are made with
exclusive high strength FM425
alloy, and enhanced with
16.5% silicon for excellent
tensile strength and scuff
resistance. This advanced
metallurgy permits tighter
bore clearances, which help
minimise noise on cold engine
start-up. These pistons are
the ideal choice for street
performance applications and
late-model replacement.

More Sealed Power
hypereutectics benefits:

• Higher
  strength than cast or forged
  at operating temperature
• Finely dispersed silicon
  particles provide a highly
  resistant wear surface and
  reduces scuffing
• Lower material growth allows
  pistons to be fit tighter,
  improving cylinder sealing
  for less blow-by and more
  power
• High silicon
  content allows elimination of
  groove inserts in certain
  applications
• Designed
  toretain standard ring gaps
  in the top groove

Piston Specifications
:

• CID:
  389
• Bore: 4.040
• Stroke: 3.750
• Rod
  Length: 6.000
• Compression Height: 1.130
• Compression Ratio with
  64cc chamber volume: 10.66
• Compression Ratio
  with 72cc chamber volume:
  9.81
• Compression
  Ratio with 76cc chamber
  volume: 9.43
• Dome
  Volume: -5.0cc
• Pin
  Type: Floater with tapered
  lightweight pin
• Recommended Ring Set: Moly –
  SPR8902 060, STD Fit –
  SPR9902 060, File Fit –
  SPR9771 065
