SBC 4.000″ PISTONS +7cc DOME 3.750″ ST 5.700″ ROD 1.425″ CH

Description

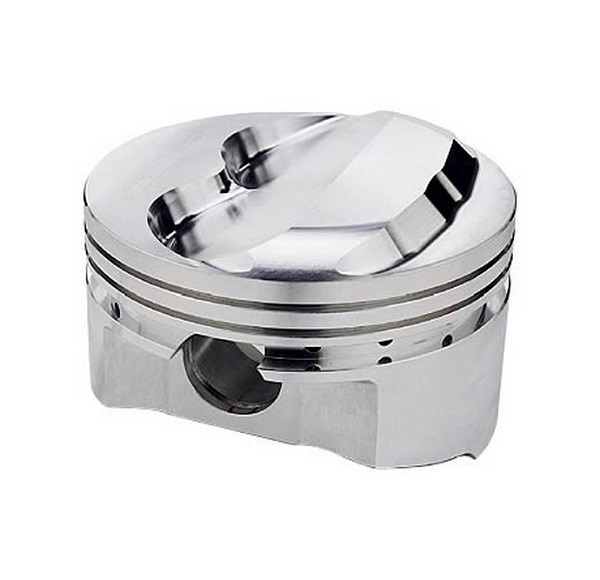

This piston set is ideal
for oval track to
street/strip applications, it
is forged from low silicon
2618 aluminium alloy.
Designed for use with most
popular 23 degree heads,
features include CNC machined
ring grooves and forced pin
oiling. Piston set accepts
1/16, 1/16, 3/16 rings.

Includes
:

• Spiro
  Lock: 927-042-CS
• Straight Wall Pin:
  927-2750-15-51S(130g)
• Pin fitting

Specifications
:

• Part #:
  SRP231311
• CID: 377
• Bore: 4.000
• Stroke: 3.750
• Rod
  Length: 5.700
• Compression Height: 1.425
• Compression Ratio with
  58cc chamber volume: 14.0
• Compression Ratio with
  64cc chamber volume: 12.8
• Compression Ratio with
  70cc chamber volume: 11.9
• Dome Volume: 7cc
• Gram Weight: 471
• Oversize: 0.000
• Recommended Ring Set (Check
  Proseal listing to determine
  oil ring tension):
  J100F8-4000-5
