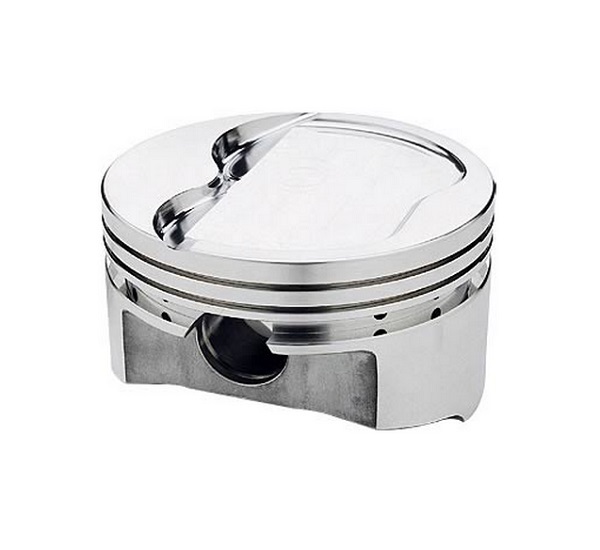

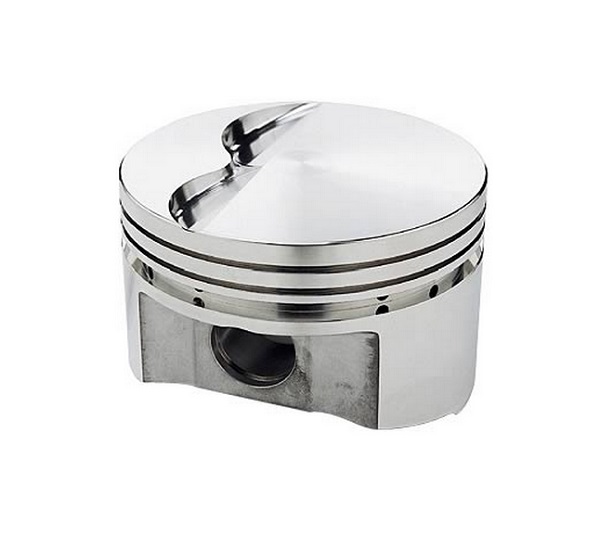

SBC 4.030″ PISTONS -16cc DISH 3.750″ ST 6.000″ ROD 1.125″ CH

Description

This piston set is forged from high silicon 4032 aluminium alloy and specially designed for mild turbo, supercharged and nitrous applications. Features Forged Side Relief (FSR) and forced pin oiling. Piston set accepts 1/16, 1/16, 3/16 rings.
Includes
:
Spiro Lock: 927-042-CS

Straight Wall Pin: 927-2750-15-51S(130g)
Pin fitting

Specifications
:
Part #: SRP138103
CID: 383
Bore: 4.030
Stroke: 3.750
Rod Length: 6.000
Compression Height: 1.125

Compression Ratio with 58cc chamber volume: 10.4

Compression Ratio with 64cc chamber volume: 9.8

Compression Ratio with 70cc chamber volume: 9.2

Dome Volume: -16.0cc

Gram Weight: 403
Footnote: Oil Rail Support is Included
Oversize: 30
Recommended Ring Set (Check Proseal listing to determine oil ring tension): S100S8-4030-5
SRP and more.
Pistons was founded in 1997 by JE Pistons, the world’s largest manufacturer of forged racing pistons. The idea was simple, to create a high quality forged piston at an affordable price. Every SRP forging was created with quality, performance and affordability in mind. By designing dedicated forgings, the pistons became both lighter and stronger while machining time and scrap aluminium were drastically reduced. These factors have reduced the price of SRP Pistons and contributed to their success. Today, over 400 different piston part numbers comprise the SRP product line-up, including Chevy, Ford, Chrysler, Honda
