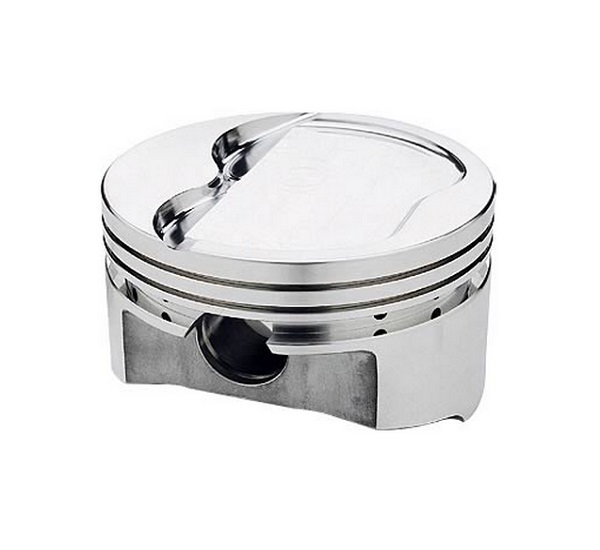

SBC 4.030″ PISTONS -16cc DISH 4.000″ ST 6.000″ ROD 1.000″ CH

Description

This piston set is
designed for normally
aspirated or moderate forced
induction/nitrous
applications, it is forged
from high silicon 4032
aluminium alloy. Features
include Forged Side Reliefs
(FSR), accumulator grooves
and a high performance skirt
coating.

Includes:

• Wire Lock: 927-073-MW
• Straight Wall Pin:
  927-2250-15-51C (106g)
• Ring Set: JG31F8-4030-2
  (1.2mm, 1.5mm, 3.0mm)

Specifications:

• Part #: SRP271060
• CID: 408
• Bore:
  4.030
• Stroke: 4.000
• Rod Length: 6.000
• Compression Height:
  1.000
• Compression
  Ratio with 58cc chamber
  volume: 11.1
• Compression Ratio with 64cc
  chamber volume: 10.4
• Compression Ratio with 70cc
  chamber volume: 9.8
• Dome Volume: -16.0cc
• Gram Weight: 338
• Footnote:Oil Rail Support is
  Included, Piston set also
  suits 3.480″ stroke with
  6.250″ rod length
• Oversize: .030

SRP Pistons was founded in
1997 by JE Pistons, the
world’s largest manufacturer
of forged racing pistons. The
idea was simple, to create a
high quality forged piston at
an affordable price. Every
SRP forging was created with
quality, performance and
affordability in mind. By
designing dedicated forgings,
the pistons became both
lighter and stronger while
machining time and scrap
aluminium were drastically
reduced. These factors have
reduced the price of SRP
Pistons and contributed to
their success. Today, over
400 different piston part
numbers comprise the SRP
product lineup, including
Chevy, Ford, Chrysler, Honda
and more.
