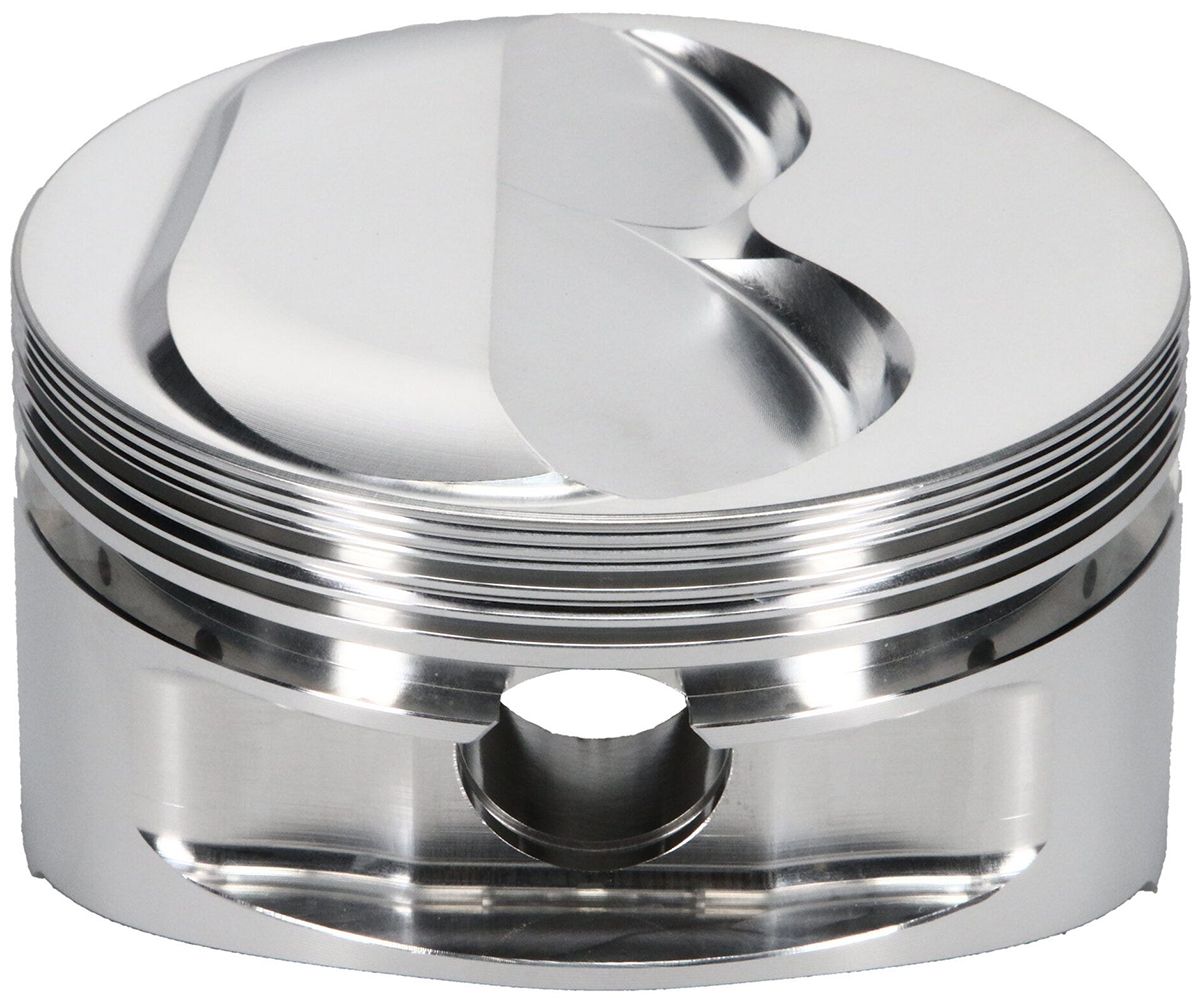

SBC 4.125″ PISTONS +5.6cc DOME3.750″ ST 6.000″ ROD 1.125″ CH

Description

These high-compression pistons are compatible with most aftermarket 23° heads and are ideal for drag racing and circle track applications. Valve reliefs will accommodate oversized valves and long duration, tight lobe separation cams. Precision CNC ring grooves are designed for 1/16, 1/16, 3/16 rings. Will not fit Pro Topline or Brodix 11X cylinder heads.

Includes
:

Pin #927-2750-15-51S (130g)
Contact reduction grooves
Double Spiro Locks #927-042-CS
Double pin oilers

Specifications
:
Part #: J182053
CID: 401
Bore: 4.125

Stroke: 3.725
Rod Length: 6.000
Block Height: 9.000
Compression Height: 1.125
Compression Ratio with 58cc chamber volume: 14.3
Compression Ratio with 64cc chamber volume: 13.1
Compression Ratio with 76cc chamber volume: 11.3
Dome Volume: 5.6cc

Gram Weight: 450
Footnote: Solid dome design, Oil Rail Support is Included
Oversize: STD

Recommended Ring Set (Check Proseal listing to determine oil ring tension): J10008-4125-5
