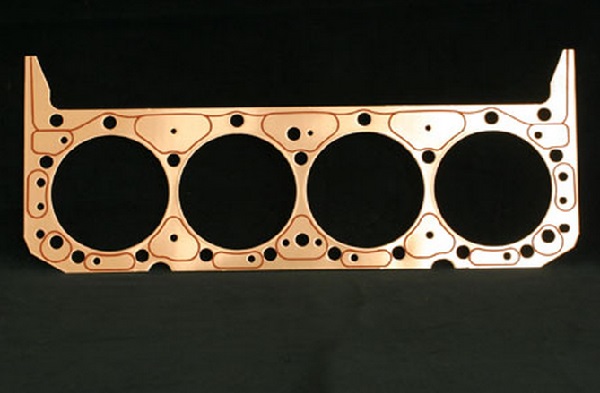

SBC 4.200 X .062 CHG ICS TITAN

Description

These Head Gaskets Do Not
Require O-rings in the block
or head, and they require no
additional sealant. Patented
Integral Combustion Seals
found only on ICS Titan head
gaskets take the place of
O-rings in the block or head,
with an added benefit. The
illustration shows how the
solid gasket body is cut and
separated for insertion of a
stainless O-ring wire.
Primary combustion sealing is
achieved by load
concentration from the
inserted wire as in the case
of an O-ringed block. In
addition, the upper and lower
flanges of the ICS combustion
seal remain open toward the
cylinder allowing the
pressure of combustion to
force them against the block
and head.

Extreme
cylinder pressure can cause
the head to lift, in this
case the upper and lower seal
flanges trap high pressure
gases forming a secondary
combustion seal. Coolant and
oil sealing is handled by
exclusive patented bead seals
bonded to the gasket
When determining gasket bore
opening consider the
combustion chamber shape to
insure that the combustion
seal falls outside of the
chamber.
