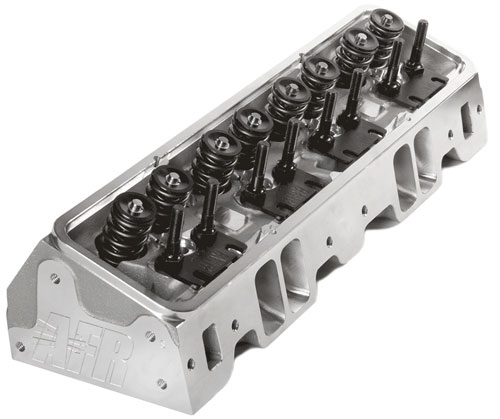

SBC ELIMINATOR 235CC COMPLETE 80CC ANGL PLUG COMP PACKAGE

Description

With the price of big
displacement SBC engines
fraction of what they were
years ago, the allure to go
BIG is stronger than ever. To
help quench the thirst of
that large displacement
monster AFR is proud to offer
the largest direct bolt on
23° Chevy head yet. At
235 cc’s, anything under 400
inches can look the other
way. It has the same geometry
as the 227 head and will
accept all the same rocker
arms, stud girdles, etc. AFR
offset stud girdles are the
only special parts required.
Some applications require
shaft mount rockers or .050
offset intake rocker arm for
durability and reliability of
valve train components.
Standard rocker arms can be
used but the intake rocker
arm will be at a slight angle
and the roller tip will not
be perfectly centered on the
valve. It will feature a
larger 2.125 diameter intake
valve. Exhaust valve diameter
stays the same with a little
more flow from its larger
runner volume. The big news
is our all new intake port
design which pushes this
standard location intake port
over 335 CFM’s! That’s
18° territory and this
head should be able to
generate power figures that
rival those heads (725+ HP).

Basic Package
Components:

• 100% CNC Ported
  Combustion Chambers
• 100% CNC Ported Exhaust Ports
• 100% CNC Ported
  Intake Ports
• 3-angle
  Radiused Valve Job
• Bead Lock Intake Valve,
  2.125″ x .100″ long
• Bead Lock Exhaust
  Valve, 1.600″ x
  .100″ long
• 1.550″ OD Roller Dual
  Valve Spring, 225 lbs on
  seat, .710″ maximum lift
• 10° 4140 Chrome
  Moly Retainers
• 10° Bead Lock Valve
  Keepers
• 7/16″
  Rocker Studs
• Guide
  Plates
• Viton Valve
  Seals
• Hardened Spring
  Seat
• Intake Valve
  Seats
• Exhaust Valve
  Seats
• Bronze Valve
  Guides
