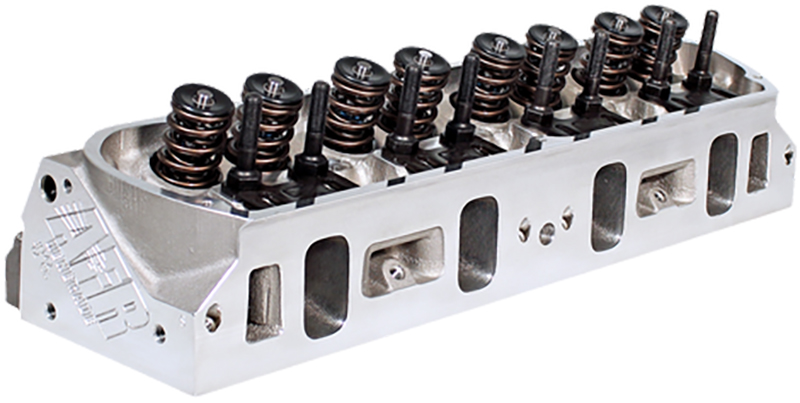

SBFORD RENEGADE 195CC INTAKE 58CC CHAMBER COMP PACKAGE

Description

These heads come ready for
the maximum street/strip Small
Block Ford performance
possible. AFR’s 195cc sport
lightweight 8mm 2.050 intake
and 1.600 exhaust valves with
options for either 58cc or
72cc combustion chambers and
70cc exhaust ports. With AFR’s
3/4″ thick head deck, it’s no
problem handling that
additional cylinder pressure.
Each head is also drilled for
the larger 1/2″ head bolt for
maximum head gasket retention
as a standard feature of this
serious race piece in street
disguise.

Basic
Package Components:

• 100% CNC Ported Combustion
  Chambers
• 100% CNC Ported Exhaust
  Ports
• 100% CNC Ported Intake
  Ports
• Competition 5-angle Valve
  Job
• 8mm Bead Lock Intake
  Valve, 2.050″ stud mount
• 8mm Bead Lock Exhaust
  Valve, 1.600″ stud mount
• PAC 1.270″ OD Hydraulic
  Roller Dual Valve Spring, 155
  lbs on seat, .650″ maximum
  lift
• Manley 7° Chrome Moly
  Retainers
• 7° Bead
  Lock Valve Keepers
• ARP 7/16″ Rocker
  Studs
• Adjustable 5/16″ Guide
  Plates
• Viton Valve Seals
• Hardened Valve Spring
  Locator
• Ductile Iron Intake Valve
  Seats
• Ductile Iron Exhaust Valve
  Seats
• Bronze Valve Guides
