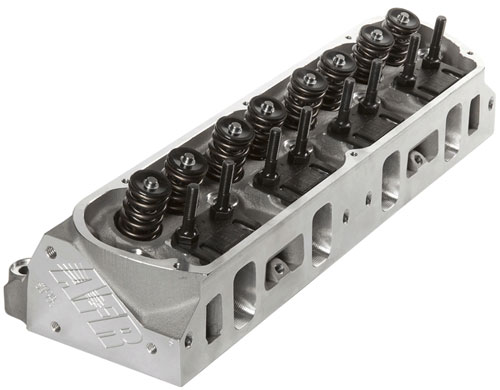

SBFORD RENEGADE 205CC COMPLETE58CC CHAMBER STUD MOUNT
SBFORD RENEGADE 205CC COMPLETE58CC CHAMBER STUD MOUNT
$6,687.59
Description
If you’re looking for the world’s finest street/strip head available, AFR’s 205cc aluminum cyilnder head is your answer. With lightweight 8mm 2.080 intake valves, 1.600 exhaust valves this head moves tremendous volumes of air through conservative runner volumes, spelling big torque and horsepower numbers. With combustion chamber volumes of 58cc or 72cc accompanied by 70cc exhaust parts which are raised .125 higher than stock, AFR’s new 205cc is the ultimate choice for 331 through 392 engines operating from 3500 RPM to 8000 RPM. AFR’s trademark 3/4″ thick head deck makes them ideal for heavy nitrous or blower applications. With available optional nitrous or blower exhaust ports featuring 73cc ultra high flowing exhaust ports.
Basic Package Components:
100% CNC Ported Combustion Chambers
100% CNC Ported Exhaust Ports
100% CNC Ported Intake Ports
3-angle Radiused Valve Job
Bead Lock Intake Valve, 2.080″ x 100L
Bead Lock Exhaust Valve, 1.600″ x 100L
1.550″ OD Roller Dual Valve Spring w/ dampener, 225 lbs on seat, .710″ maximum lift
10° Chrome Moly Retainers
10° Bead Lock Valve Keepers
7/16″ Rocker Studs
5/16″ Guide Plates
Viton Valve Seals
Hardened Spring Seat
Intake Valve Seats
Exhaust Valve Seats
Bronze Valve Guides
Additional information
| Weight | 30.0000 kg |
|---|---|
| Dimensions | 61.00 × 30.00 × 22.00 cm |
| Category list | |
| Brand | Afr |
