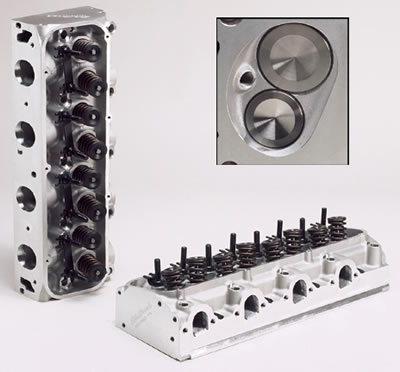

SINGLE PERF RPM FORD 460 75CC HEAD
SINGLE PERF RPM FORD 460 75CC HEAD
$3,299.64
Description
Performer RPM heads are perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. These heads give great torque and horsepower up to 6500 rpm.
Designed for 1968-87 429-460 Fords
Ideal for high-performance street and drag racing
Over 500+ hp at 6500 rpm (+30 hp more than ported factory heads) and 525+ ft/lbs. of torque at 4500 rpm with the Performer RPM Total Power Package
Intake ports can be opened up to match Victor manifolds # ED2965 and # ED2966
Performer RPM 460 heads accept factory exhaust, aftermarket headers and factory valvetrain components.
Requires the use of 3/8″ diameter pushrods
Combustion chamber volume:
75cc
Intake runner volume:
292cc
Exhaust runner volume:
100cc
Intake valve diameter:
2.19″
Exhaust valve diameter:
1.76″
Valve stem diameter:
11/32″
Valve guides:
Manganese bronze
Deck thickness:
5/8″
Valve spring diameter:
1.55″
Valve spring maximum lift:
.700″
Rocker stud:
7/16″
Guide plate:
Hardened Steel
Pushrod diameter:
3/8″
Exhaust port location:
Stock
Spark plug fitment:
14mm x 3/4″ reach, gasket seat
Made In:
USA
Additional information
| Weight | 19.6750 kg |
|---|---|
| Dimensions | 65.80 × 21.30 × 28.40 cm |
| Category list | |
| Brand | Edelbrock |
