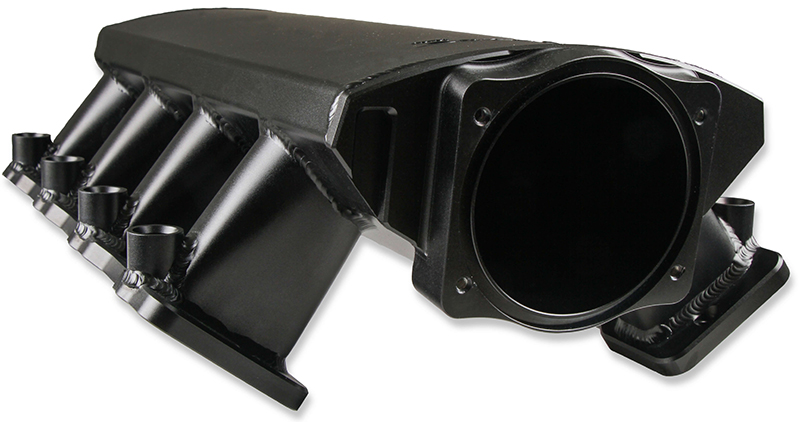

SNIPER LOW PROFILE FABRICATED MANIFOLD LS3 BLK 102MM W/FUEL

Description

Holley Sniper Fabricated
Manifolds continues to push
the aftermarket by introducing
Low Profile intakes for GM LS
Engines. These Intakes are a
good looking, perform well,
and offer an extremely good
value for a performance sheet
metal style intake manifold
for the very popular GM LS
engine family.

Each
manifold is ready to bolt on
out of the box and are
designed to accept our Sniper
high-flow throttle bodies and
include high flow fuel rail
kit. This updated design was
developed to allow the end
user to fit under a stock
hood.

Each manifold is
precision fixtured and welded
for a perfect fit and maximum
structural integrity. Choice
of Throttle Body opening sizes
of 92mm & 102mm are
available

Features:

• Low Profile Design (overall
  1.875″ shorter) allows fitment
  under stock hoods on Corvette,
  Camaro, Firebird, GTO, and
  others where hood clearance is
  at a minimum
• Shortened
  runners allow for compact
  design. Overall plenum volume
  maintained by increasing the
  overall width of the plenum
  and increasing the overall
  dimensions of the
  runner.
• 3mm (1/8″)
  thick T6061 Sheet Aluminium
  construction, strong and
  durable even under high
  horsepower and boosted
  conditions
• Available
  in 92mm and 102mm bore
  Throttle Body
  Openings
• 100% TIG
  welded
• Intakes include
  3/8″ Fuel rail kits with -8AN
  fittings and crossover braided
  line capable of supporting
  750+ horsepower (laser
  engraved Sniper
  logo)
• Runner lengths
  with tapered top on EFI
  intakes designed to increase
  velocity and more evenly
  distribute airflow to all 8
  cylinders
