SPRING LOCATOR LS ENG w/.520″ GUIDE. 1.32″OD .680″ID
SPRING LOCATOR LS ENG w/.520″ GUIDE. 1.32″OD .680″ID
$153.73
Description

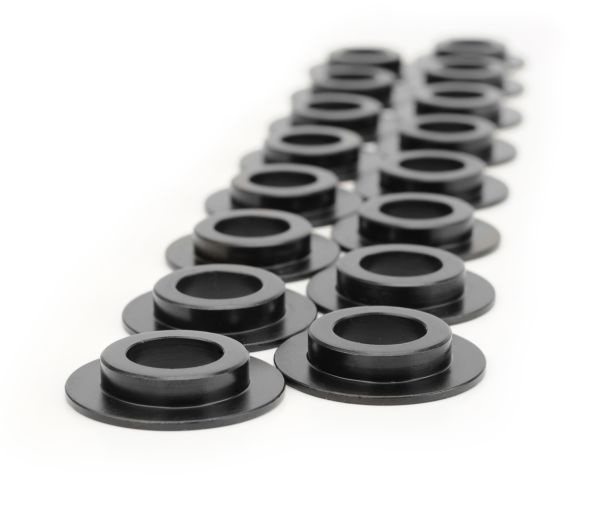

Valve Spring Locators
The older style standard shims will not hold up to the extreme spring pressures and high RPM
found in racing engines being built today. COMP Cams offers a simple but effective solution to
this problem – a thin, hardened steel alloy seat which will not only protect the head and shim
but also locate and hold the spring in place. Previously, this part has been available only in a
cup form with the retaining portion being on the outside of the part. This required that the head
be machined a great deal to accept this cup so COMP now offers an I.D. locator with the
locating shoulder on the inside, as well as the spring cup. Many sizes are available to locate
from the inside or outside diameter.
Locator
Outside Diameter: 1.300″
Inside Diameter: .520″
Spring
Outside Diameter: N/A
Inside Diameter: .670″
Thickness:
.060″
Additional information
| Weight | 0.2400 kg |
|---|---|
| Dimensions | 14.20 × 4.30 × 8.40 cm |
| Category list | |
| Brand | Comp Cams |
