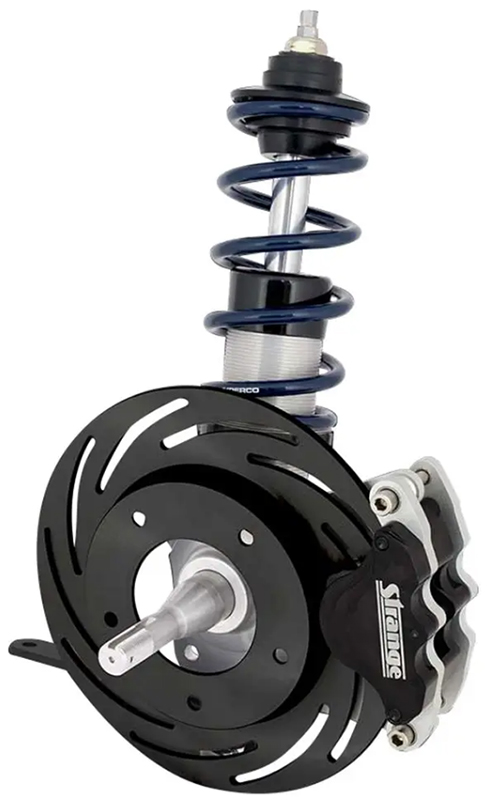

STRANGE LIGHT DUTY STRUT PACK WITH 1 PISTON CALIPER**NOTES**
STRANGE LIGHT DUTY STRUT PACK WITH 1 PISTON CALIPER**NOTES**
$4,999.93
Description
Strange Forged Aluminium Struts
Strange Forged Aluminium Strut Packages provide the basis for a lightweight front suspension. Frame construction is much simpler, suspension geometry is more easily established, and header clearance is improved over conventional A-frame suspension.
Strange forged aluminium struts utilise re-valvable Strange cartridges. Every Strange strut is rebound (extension) adjustable and all stud mount Strange Struts are externally adjustable for more convenient extension tuning. Strange aluminium struts are also available with an optional external compression adjustment- allowing for two (double) independent adjustments.
Strange aluminium strut bodies are forged from 2000 series aluminium alloy to provide high strength at a minimal weight. Heat treated, Camaro size, 17-4 stainless steel spindles provide an exceptionally strong wheel mounting surface. Fatigue resistant steel steering arms can be formed easily to obtain proper steering geometry. Brake mounting bosses are an integral part of the forged housing, providing simplicity for brake kit mounting on either side of the strut.
Every Strange strut package features integral designed components ensuring proper fit, ease of assembly, maximum performance and an unsurpassed regard for safety.
Strange offers eye mount and externally adjustable stud mount struts with the following brake kit options: lightweight (single piston calipers), medium duty (2-piston calipers), and heavy duty (4-piston calipers).
Forged Aluminium Strut Features:
Forged aluminium body x-rayed to ensure quality
Lightened 17-4 stainless steel spindles
Re-valvable Strange cartridges
Large & fully ground strut shaft
Eye or external adjustable stud mount
Three brake kit packages to choose from
Includes Chrome-Moly lower control arm kit- choice of 1/2″ or 7/16″ 4130 rod ends
Choice of Hypercoil springs
Strange Lightweight Strut Package:
Strut package for stud mount applications.
Package includes externally adjustable stud mount struts
lower control arm kit
lightweight (spindle mount) brake kit
Hypercoil springs and spring seat bearing kit
Package does not include wheel bearings or seals
Additional information
| Weight | 21.7500 kg |
|---|---|
| Dimensions | 45.00 × 37.00 × 38.00 cm |
| Category list | |
| Brand | Strange |
