STROMBERG 2 X 2 LINKAGE KIT CHROME REGULAR DUAL 4-3/4″

Description

Designed and manufactured
exclusively by Stromberg
Carburetor, the TwoStep
linkage range combines clean,
traditional looks with maximum
leverage. Each kit comes
pre-assembled and installs in
just two simple steps, without
the need for extended throttle
shafts. These kits are not a
‘one size fits all’ solution.
Different intakes use
different carb spacing, so we
modeled every kit in 3D CAD
and offer different kits for
specific intakes. If you’re in
doubt, simply measure your
manifold spacing – throttle
shaft to throttle shaft. A

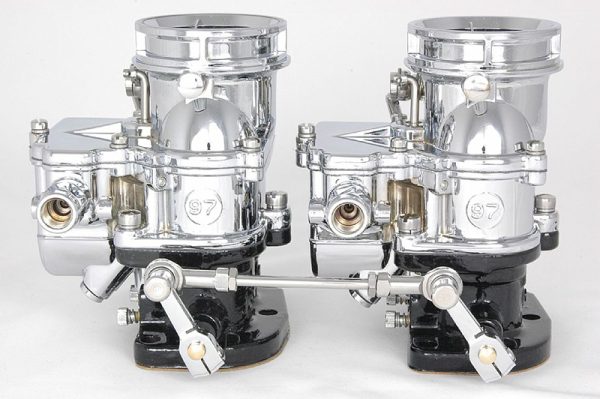

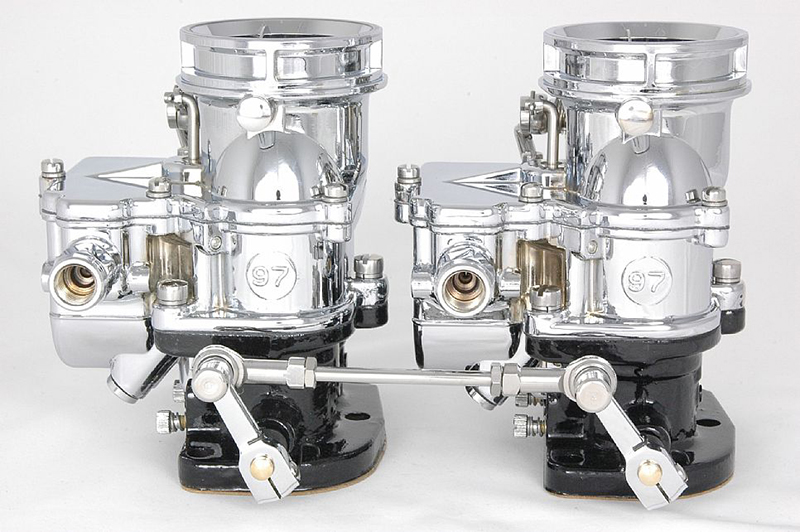

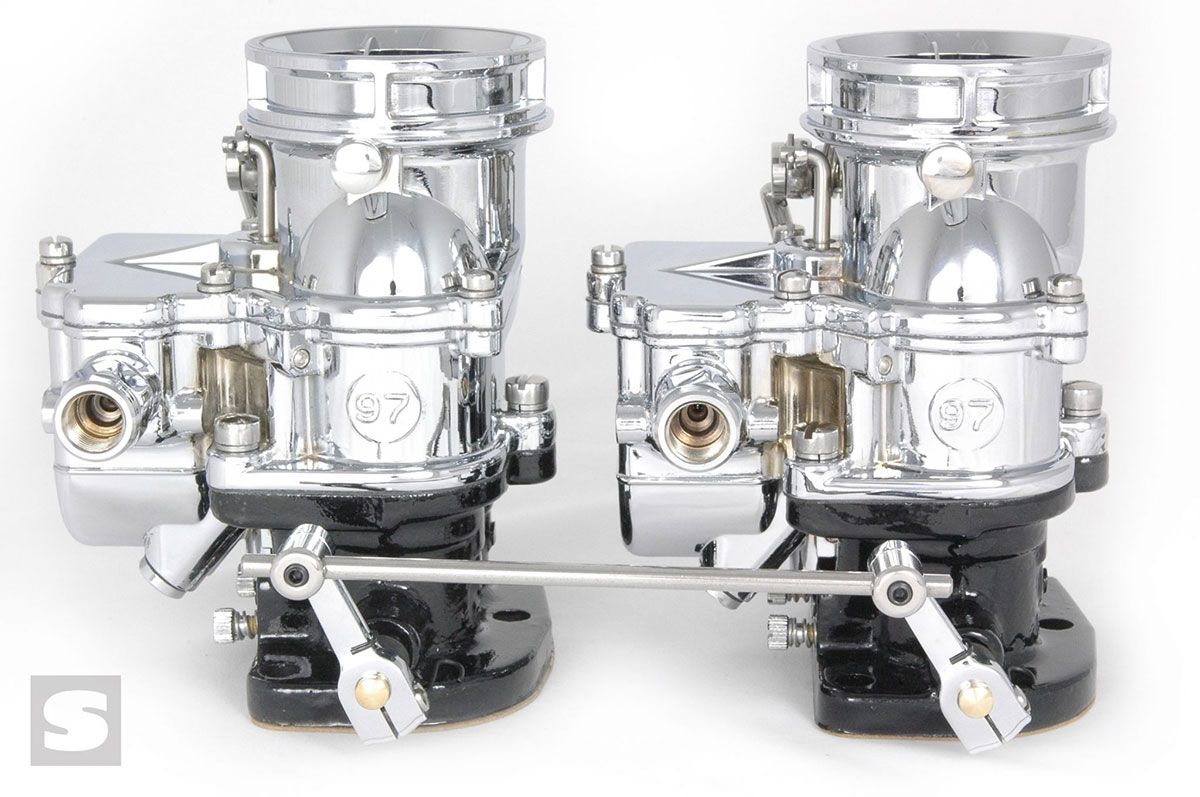

Premium, CHROME 2×2 carburetor
linkage with rod ends for
positive action. Use with
intake manifolds that put the
carburetors 4-3/4 inches
apart.

Features:

• Premium kits have opposite
  threaded rod ends for easy
  adjustment. Just spin the rod
  to adjust for the correct
  lever angles.
• Extended
  throttle shafts are not
  required.
• Long
  die-cast zinc SuperLink lever
  arms. All other parts
  stainless steel – even the rod
  ends and lock
  nuts.
• Every kit comes
  with two new Stromberg
  ‘Snapback’ throttle return
  springs, which wrap around the
  end of the throttle shaft.
  These chemically blacked,
  stainless steel torsion
  springs snap the carburetors
  shut, yet virtually disappear
  from view.
• Special
  swivels and bolts were
  developed to clamp the rod
  ends tight. The rounded bolts
  have a small blind hole in the
  head. Simply insert a small
  rod eg, a hex key, to stop the
  swivels turning while you
  tighten the lock
  nuts.
• 4-3/4 inches
  from carb to carb
• Show
  chrome/polished stainless
  steel finish
• Extended
  throttle shafts not
  required
• Fits
  Offenhauser 1090 & 1075
  2×2 Regular
  intakes
• Fits Edelbrock
  1103 2×2 Slingshot
  intake
• Fits Navarro
  2×2 Regular
  intake
• Fits Eddie
  Meyer 2×2 High-rise
  intake
• Fits Thickstun
  PM-7 High-rise
  intake
• Works with all
  Stromberg 9141 TwoStep fuel
  lines
