STROMBERG 3X2 CHEVY FUEL LINE KIT SUIT EDEL/OFFY (NOTES)
STROMBERG 3X2 CHEVY FUEL LINE KIT SUIT EDEL/OFFY (NOTES)
$303.68
Description

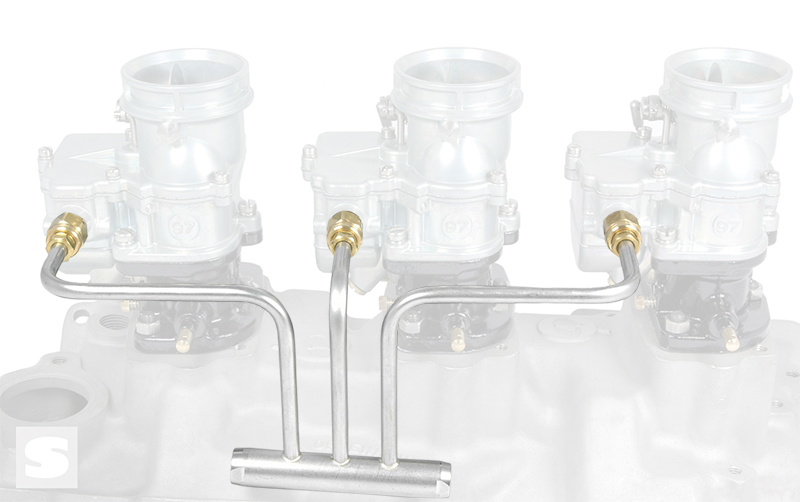

Our classic stainless steel3-into-1 fuel line (Big Bore 5/16in OD) for Small Block Chevy 3×2 intakes, combines super-clean looks with simple TwoStep installation. Designedand manufactured exclusively by Stromberg Carburetor, each kit is supplied ready to install, complete with special5/16in Ford Nut compression fittings into the carburetor. Check out the features!
Set at 5-1/2incarb spacing to fit Offenhauser and Edelbrock SBC intakes, this kit uses CNC-bent 5/16†OD 304 stainless steel lines with leak-free, ‘invisible’ furnacebrazed joints. The round-bar fuel block sits down close to the manifold, matching the 4 degree Chevy intake angle to align visually with the valve covers. For maximum versatility, it has 1/4NPT threads at both ends with machined 11/16in AF flats so fittings can be tightened safely without damaging the line.
To help hot rodders complete the fuel lineinstallation, a complementary range of 1/4NPT brass fittingsis also available from Stromberg. Retaining the traditional hot rod look, theymake it so much easier to get fuel into the block and mount a liquid-filled fuel pressure gauge. NPT fittings illustrated are not included with this kit. Please order separately.
9178K 1/4NPT 90deg elbow (for fuel pressure gauge)
9179K 1/4NPT to 1/8NPT bush (for fuel pressure gauge)
9180K 1/4NPT hard line compression adapter (for 5/16in hard line)
9181K 1/4NPT hexhead plug
9182K 1/4NPThose fitting
Note:Use 9564K-BIG Stromberg S-jets
Stromberg Big Borefuel lines must be used with Stromberg 9564k-BIG S-jet inlet valves. Fitted as standard on Stromberg BIG 97s,they are specially designed totake 5/16in OD stainless steelline. If you have regular Stromberg 97 carburetors, you MUST update to 9564K-BIG S-jets.
5-1/2†carbspacing for Small Block Chevy
Fits Offenhauserand Edelbrock SBC intakes
Big Bore 5/16in CNC-bent stainless lines
Fuel block anglealigns with valve covers
Ford Nut compression fittings included
Classic 3-into-1 shape – keeps everything on the engine
1/4NPT threads at both ends of fuel block – fittings available from Stromberg!
Must use 9564K-BIG S-jet inlet valves (standard on Stromberg BIG 97)
Use with Stromberg9246S or 9246PRO linkage
Additional information
| Weight | 0.5000 kg |
|---|---|
| Dimensions | 39.00 × 13.00 × 9.00 cm |
| Category list | |
| Brand | Stromberg |
