STROMBERG THROTTLE SHAFT EXT KIT

Description

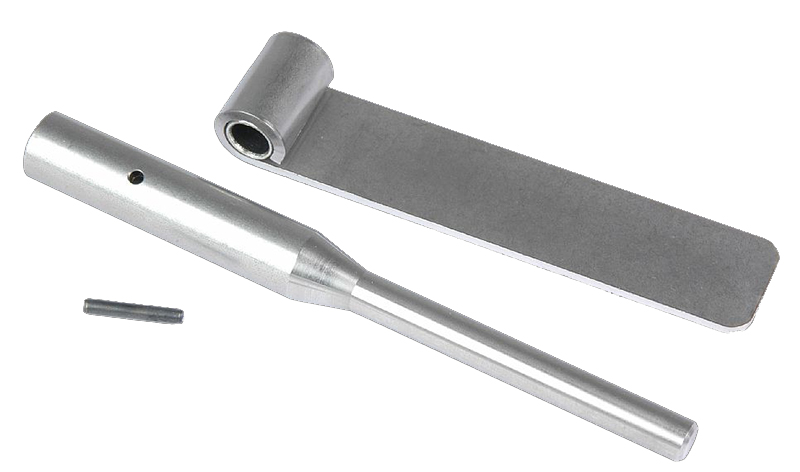

Extending the Stromberg 97 throttle shaft for difficult linkage applications, this kitcomes with a support bracket for reliable linkage operation. It’s designed for narrow spaced 4×2 and 6×2 intakes where all of the carburetors must be linked on one side – like the Weiand WC4D, Edelbrock CD-694 and supercharger adapter plates.
To resist twisting in operation (common with brass shafts), Stromberg extensions are high-grade stainless steel, with a largerdiameter section extending as far up the shaft as possible. For improved looks, it covers the 97 throttle shaft bush. And for maximum security and alignment, it is fixed with a 3/32” roll pin (supplied)through the hand throttle mounting hole, standard on every 97 throttle shaft.
The new shaft extension is long enough for up to 3-3/4” carb offset across the engine. And the stainless steel ‘trim-to-fit’ supportbracket, with its PTFE-lined bush for smooth operation, accommodates up to 4-1/8”in-line offset between the twobanks of carburetors – enough for all ‘known’applications. Naturally, the kit works perfectly with otherparts from the Genuine Stromberg range, allowing customers to complete their linkage with matching parts.
Extends the 97 throttle shaft 3-3/4” fordifficult linkage applications
Stainlesssteel construction resists twist
Support bracket ensures reliable linkage movement
PTFE-lined support bush for smooth throttle action
Perfect for Weiand WC4D (small block Chevy) & Edelbrock CD-694 (early Cadillac) intakes. Blower plates too!
Detailed instructions available at the Stromberg Tech Center
