TC-4 PLUS THERMOCOUPLE AMPLIF FOR MTS 4 CHANNEL W/ANALOG OUT
TC-4 PLUS THERMOCOUPLE AMPLIF FOR MTS 4 CHANNEL W/ANALOG OUT
$320.97
Description
The TC-4 PLUS includes the TC-4 PLUS, Serial Program Cable, Molex to Molex Patch Cable (to daisy chain with other MTS compatible devices),and manual. P/N 3915

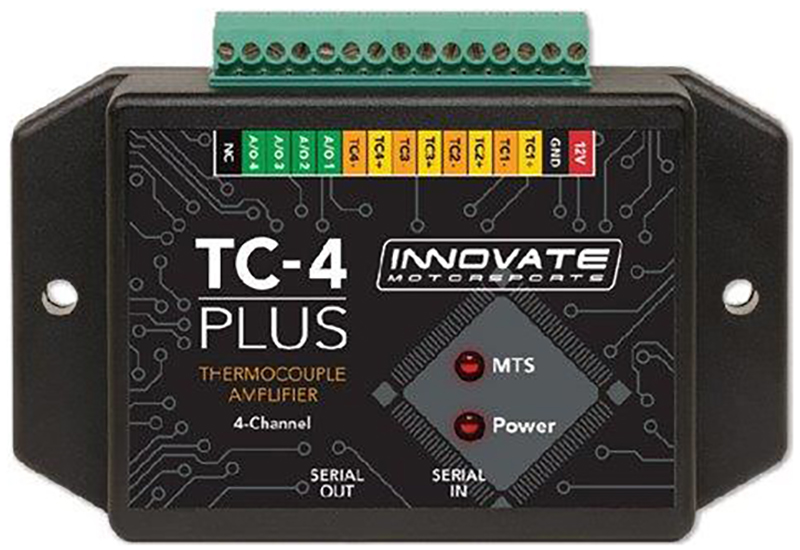

TheTC-4 PLUS is 4 channel type-K thermocouple amplifier device that can be used a stand-alonesystem or as part of a MTS (Modular Tuning System). The TC-4 PLUS includes a digital input/output, 4 full-programmable analog outputs, and is ideal for applications such as dynamometers, data acquisitionsystems, or standalone ECUs.
K-Type thermocouple amplifier that adds 4 temperature inputs to an MTS Log Chain
Temperature range 32-1999 deg F, 0- 1093 deg C
4-Configurable linear 0-5V analog outputs (one per input)
The TC-4 PLUS can be used to measure other temperature metrics such as intercooler inlet, outlet temperature and catalytic converter
Additional information
| Weight | 0.9100 kg |
|---|---|
| Dimensions | 25.40 × 17.80 × 5.10 cm |
| Category list | |
| Brand | Innovate Motorsports |
