TURBO DRAIN ADAPTER -12AN MALE51MM HOLE CENTRES O-RING SEAL
TURBO DRAIN ADAPTER -12AN MALE51MM HOLE CENTRES O-RING SEAL
$60.21
Description

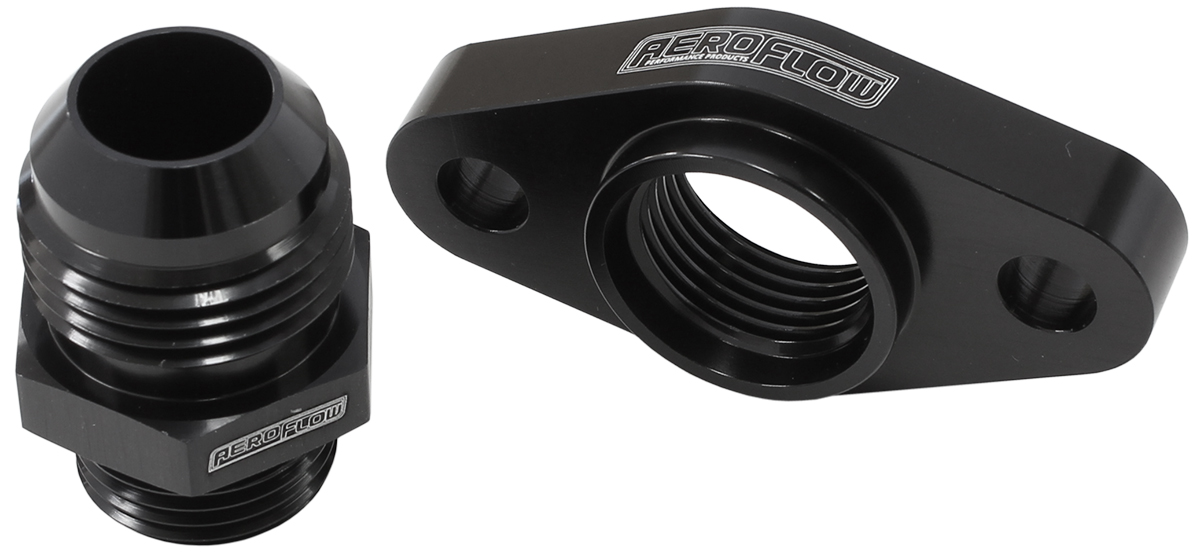

Turbo Oil Drain Adapter With O-Ring Seal.
-12 AN male with 50.8mm hole centres to suit turbos with 50.8mm bolt centres on core.
This selection of turbo drains options available from Aeroflow Performance will allow a large range custom plumbing application. For sufficient drainage of oil forboth bearing styles of turbochargers a -10AN or 5/8” hose is ideal. The oil outlet should follow the direction of gravity +/-45° when installed in the vehicle on level ground. It is recommended to avoid kinks or beyond 90-degree bends in the oil drain line and draining into the sump below. With heat surrounding the manifold and turbocharger a heat shield or sleeve is a great idea to prolong the lifeof the hose.
Additional information
| Weight | 0.0760 kg |
|---|---|
| Dimensions | 15.00 × 11.50 × 0.80 cm |
| Category list | Superchargers and Nitrous, Turbo, Turbo Drains and Gaskets, Turbo, Superchargers and Nitrous, Turbochargers and Components |
| Brand | Aeroflow |
