TURBO DRAIN ADAPTER 19MM BARB 51MM CENTRE LENGTH 100MM
TURBO DRAIN ADAPTER 19MM BARB 51MM CENTRE LENGTH 100MM
$65.27
Description

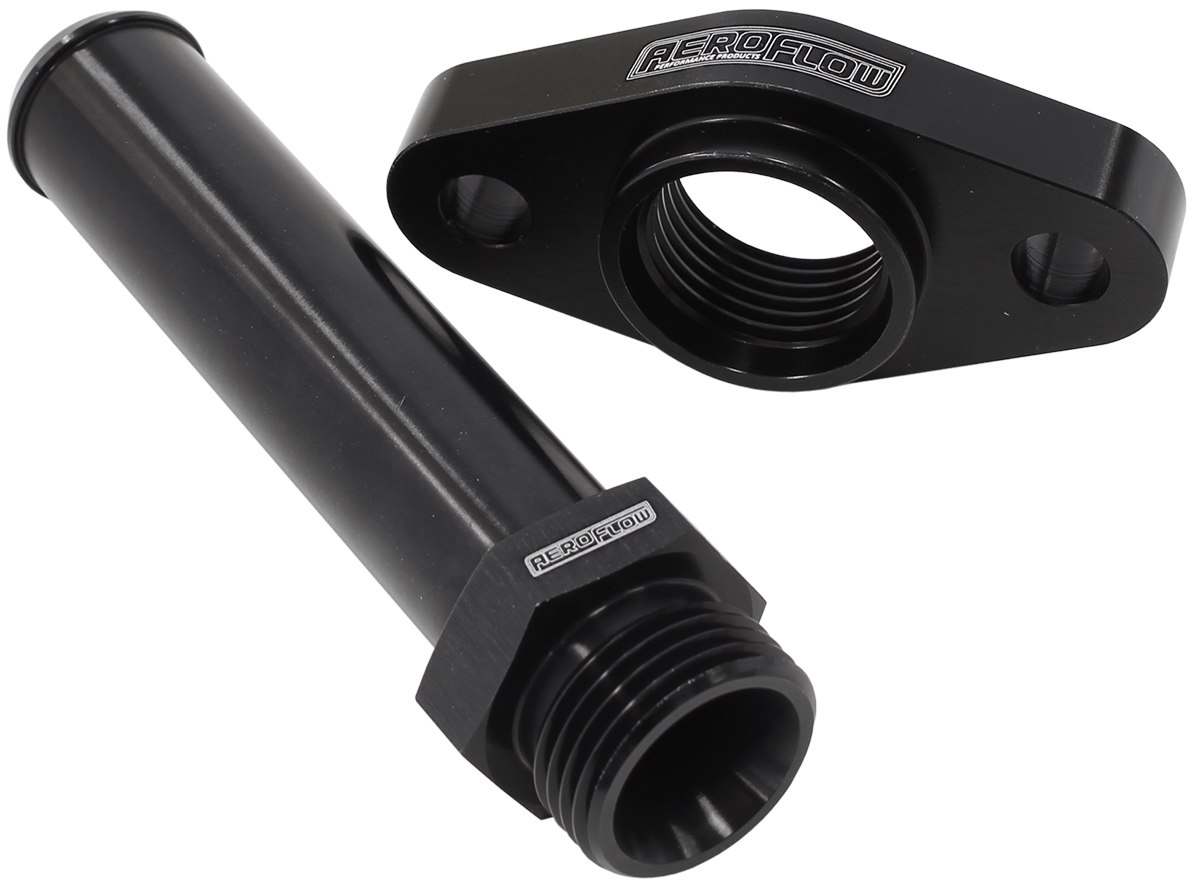

Turbo Oil Drain Adapter With O-Ring Seal.
19mm Barb 4″ (100mm) long tube with 50.8mm hole centres to suit turbos with 50.8mm bolt centres on core.
This selection of turbo drains options available from Aeroflow Performance will allow a large range custom plumbing application. For sufficient drainage of oil forboth bearing styles of turbochargers a -10AN or 5/8” hose is ideal. The oil outlet should follow the direction of gravity +/-45° when installed in the vehicle on level ground. It is recommended to avoid kinks or beyond 90-degree bends in the oil drain line and draining into the sump below. With heat surrounding the manifold and turbocharger a heat shield or sleeve is a great idea to prolong the lifeof the hose.
Additional information
| Weight | 0.0910 kg |
|---|---|
| Dimensions | 16.00 × 14.00 × 1.20 cm |
| Category list | Superchargers and Nitrous, Turbo, Turbo Drains and Gaskets, Turbo, Superchargers and Nitrous, Turbochargers and Components |
| Brand | Aeroflow |
