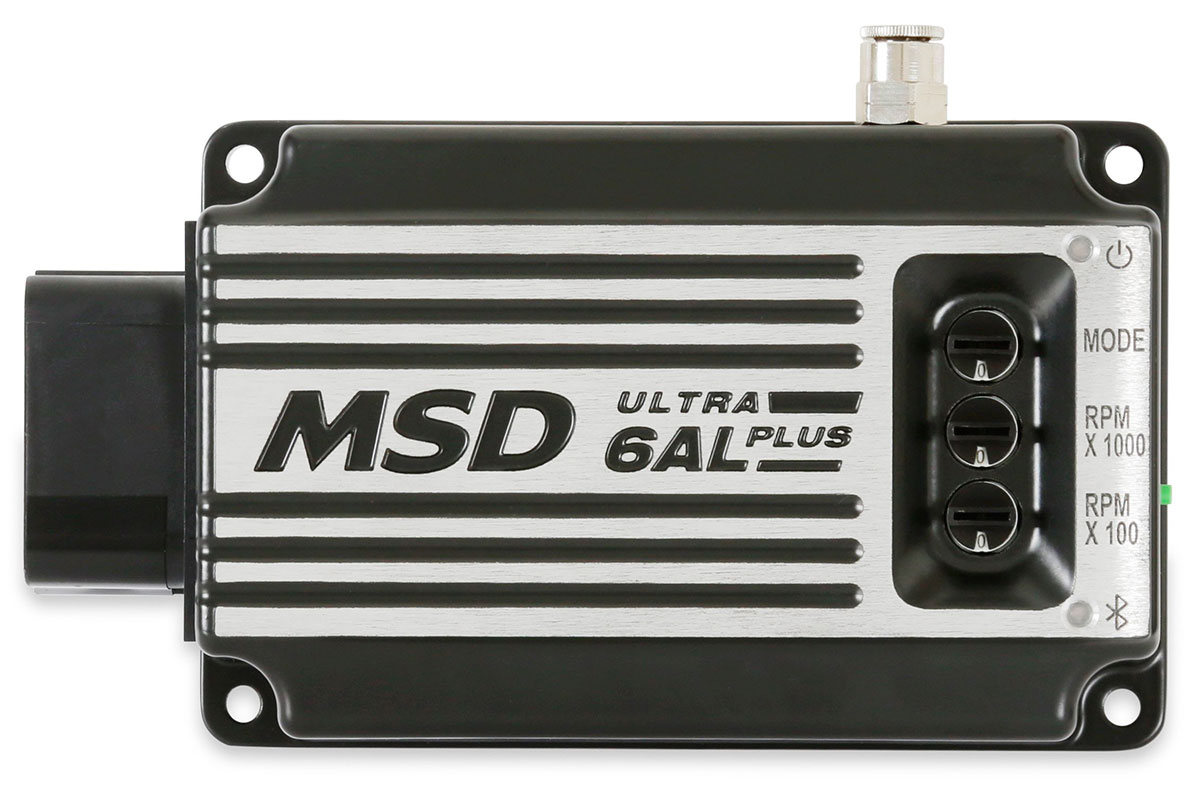

ULTRA PLUS 6AL IGNITION BLACKREV LIMIT, LAUNCH,BURNOUT,ETC

Description

The new Ultra 6AL series
delivers full MSD power in a
compact, lighter package! The
Ultra 6AL Series continues to
use a high speed controller
that can make extremely quick
compensations to the output
voltage, multiple spark
series, timing and rpm limits
while maintaining precise
timing and accurate rev
limiting. The circuits and
controller of the MSD have
been thoroughly filtered to
create protection against
Electro Magnetic Interference
(EMI). The Ultra 6AL Series
feature a capacitive discharge
ignition design. The majority
of stock ignition systems are
inductive ignitions. In an
inductive ignition, the coil
must store and step up the
voltage to maximum strength in
between each firing. At higher
rpm, since there is less time
to charge the coil to full
capacity, the voltage falls
short of reaching maximum
energy which results in a loss
of power or top end
miss.

Features:

• High conversion
  efficiency ensures minimal
  heat generation and maximum
  spark energy output with less
  current draw from the battery
  – (Highly efficient Ignition,
  minimum heat and max spark
  energy with less current
  draw)
• High RPM
  operation and maximum output
  using the Blaster HVC, PN 8252
  or HVC II, PN
  8253
• Powerful
  capacitive discharge of
  multiple sparks improves
  performance
• Consistent
  ly high spark energy of 135mJ
  to 150mJ for every firing,
  from idle to redline
  RPM
• Increase spark
  series duration lasts for 18
  of crankshaft
  rotation
• Easily
  installs on 4, 6, 8-cylinder
  engines with
  distributors
• Operates
  on most 7 to 28 volt
  electrical
  systems
• Connects to
  points, magnetic pickups, and
  Hall/Crank Input
  distributors
• Bluetooth
  connectivity to Mobile app
  interface for settings and
  monitors
• MSD CAN
  communication for easy
  connectivity to MSDView using
  a CAN MSD Hub and Power Grid
  USB or CAN-USB Bridge 89982
  product
• Straight USB
  port to easily connect to
  MSDView using a
  laptop
• Fully protected
  against an open coil, shorted
  coil & open
  load
• Compact design
  full MSD
  power
• Quickens
  throttle response &
  improves starting
• Tach
  Output
• Launch,
  Burnout, and Step Retard
  activation inputs available.
  This ignition box has a
  built-in tri step RPM rev
  limit controlled by the mobile
  app
• Mobile app
  available settings: Step
  retard value, Launch RPM
  value, Burnout RPM value, Max
  (Race) RPM
  Value
• Programmable
  Step Retard: On Ramp time, Off
  Delay, Off Ramp Time, Engine
  RPM for
  activation
• Programmabl
  e Start Retard through rotary
  switches: 0, 10, 20
  degrees
• Programmable
  cylinder selection through
  rotary switches: 4, 6, and 8
  cylinders
• Alerts and
  monitors
  available
• High level
  of security connection from
  phone to Ignition box
  (encryption) including
  sequence in push button
  implementation
• Maximum
  programmable retard of 35
  degrees
• Programmable
  timing curves in 2D Plots or
  3D tables (RPM vs Timing vs
  MAP Pressure) – You can plot
  the 3D graph and edit a table
  20×20 either from Mobile app
  (Phone) or from MSDView
  (laptop)
• Programmable
  Launch Timing (Seconds vs
  degrees after launch wire
  activation)
• MAP sensor
  interface up to 400 kPA (58
  PSI / 4 Bars)
• Capable
  to program cylinder selection
  and start retard without a
  computer or app for old school
  racers (like 6425 or 6428
  box)
