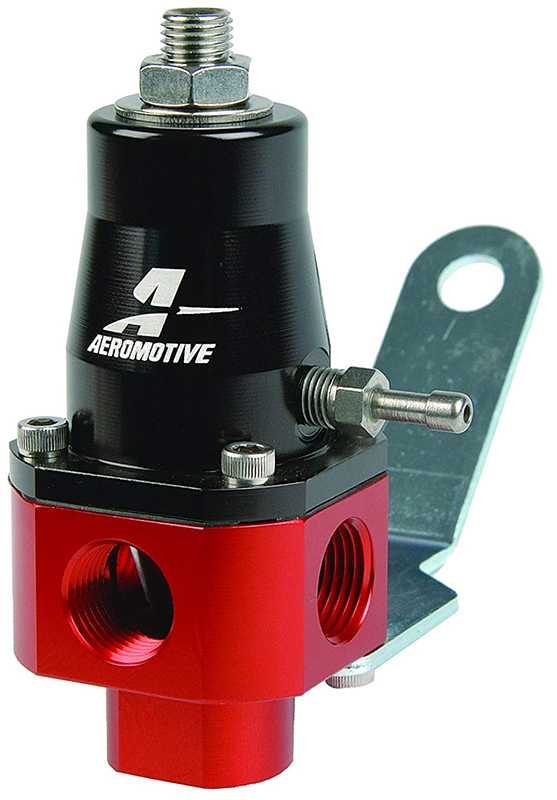

UNIVERSAL EFI & CARB FUEL REGULATOR. 3/8″ NPT PORTS
UNIVERSAL EFI & CARB FUEL REGULATOR. 3/8″ NPT PORTS
$430.00
Description
A dual purpose, universal regulator for EFI or Carburetted and street or strip applications. Base pressure adjustable from 3 to 20 PSI with standard spring, (installed) or from 20 to 60 PSI with high pressure spring (included). Offers the full flow and rock steady fuel pressure that only a dynamic, Aeromotive bypass regulator provides.
Features:
Capable of regulating any fuel pump between 100 and 250 GPH
Fuel pressure rises on a 1:1 ratio when referencing boost
All ports are 3/8″ NPT, with one inlet and three outlets on the main body and one return port on the bottom
Bypass design provides the ultimate, dynamic fuel pressure control
NOTE: requires a return line to be installed from the bottom of the regulator to the top of the tank
Additional information
| Weight | 0.4700 kg |
|---|---|
| Dimensions | 14.00 × 7.00 × 14.00 cm |
| Category list | Carburettor Regulators, Fuel Pressure Regulators, Fuel System |
| Brand | Aeromotive |
