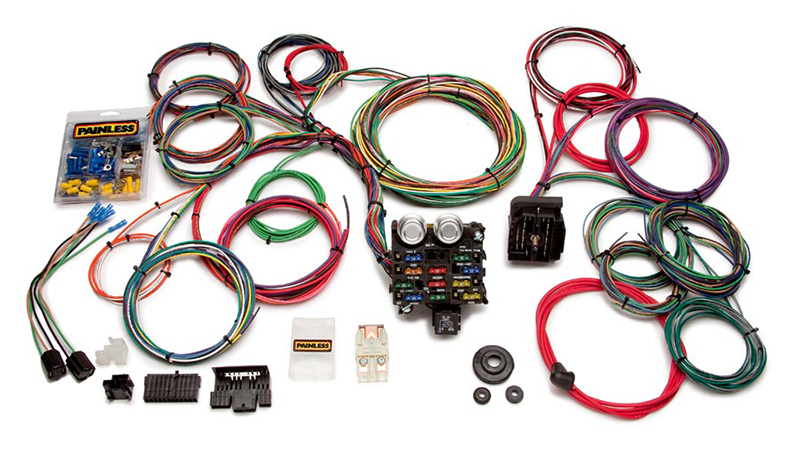

UNIVERSAL MUSCLE CAR HARNESS 21 CIRCUIT WITH DASH IGNITION

Description

This 21 circuit kit is
adaptable to fit the 1960’s,
70s, or 80s GM, Ford, and
Chrysler muscle cars where a
bulkhead connector is
required. Some minor bulkhead
modification may be required.
Please be sure to check out
all of our harnesses in this
section, as we may have an
offering for a more direct fit
harness for your vehicle.
Included with this harness are
the following parts; GM turn
signal & column mounted
ignition switch connectors;
pre wire plugs for the
headlights & dimmer
switch; and each wire is
custom printed with the
circuit identification as well
as using GM color codes for
easy
installation.

Number of Circuits:
21 Circuits – 12 Fuses w/ Horn
Relay and Maxi Fuse
Harness
Length: Universal
Fuse Type:
Blade & Maxi Fuse
Firewall
Passthrough: Bulkhead
Connector
Color
Code Based:
Universal
Circuit
Designations: Printed
on Wires

This
harness includes circuits
for:

• A/C
  & Heat
• Accessory
• Backup
  Lights
• Brake
  Lights
• Charging
• Dome
  Light
• Electric
  Choke
• Emergency
  Flashers
• Fan Relay
  Activation Power
• Fused Power
  Source
• Headlights
• Horn
  (Relay)
• Ignition
  Coil
• Instrument Panel
  Lighting and
  Gauges*
• Park
  Lights
• Radio/Clock
  (Constant and
  Switched)
• Starting
• Tail Lights
• Third
  Brake Light
• Turn
  Signals
• Wipers

*
Including Wires
For:

• Fuel
  Gauge
• Oil
  Gauge
• Tachometer
• Temperature
  Gauge
• Voltmeter
