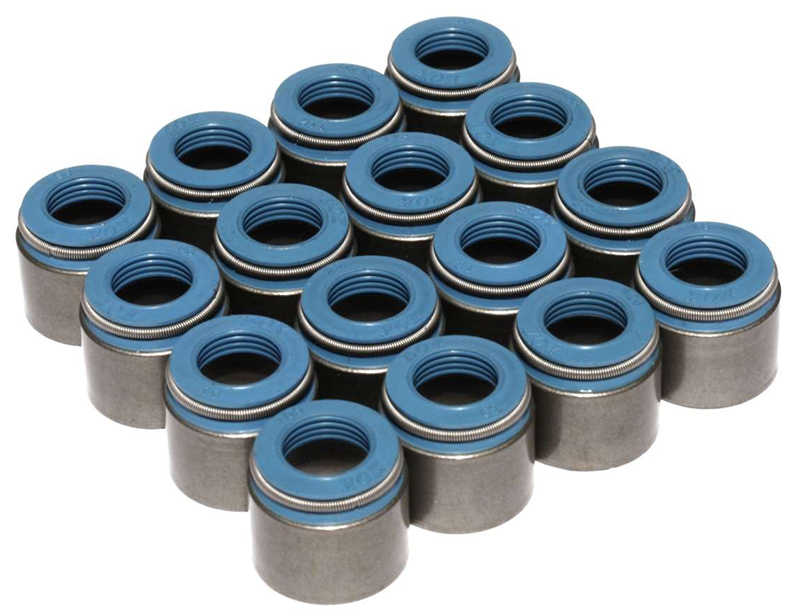

VALVE STEM OIL SEALS, 11/32″ METAL BODY VITON, .530″ GUIDE
VALVE STEM OIL SEALS, 11/32″ METAL BODY VITON, .530″ GUIDE
$114.67
Description
COMP Cams offers a complete line of valve stem seals, a must to keep unwanted oil from entering the combustion chamber through the clearance in the valve guides. The o-ring seals use the standard retainer and oil splash shield. The umbrella seal is normally used when a larger-than-stock diameter spring is used, and in the case of a double spring, the positive-stop Teflon seal is used. Smaller diameter Viton seals are also available for triple spring applications. Both the o-ring and the umbrella seals require no machining, but with the Teflon seal it is necessary to disassemble the heads and machine the top of the guide with a special cutter, which can be found to the left side of this page.
Additional information
| Weight | 0.1200 kg |
|---|---|
| Dimensions | 15.20 × 1.80 × 10.20 cm |
| Category list | |
| Brand | Comp Cams |
