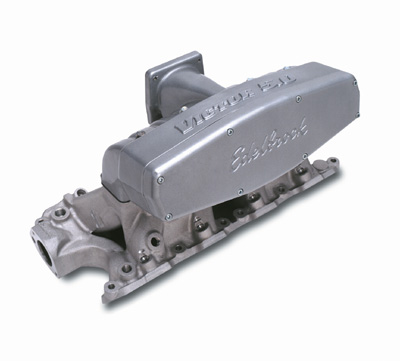

VICTOR 5.0 EFI INTAKE MANIFOLDFORD 302W 5.0L EFI ENGINES

Description

Designed for 5.0L-based
competition EFI engines, the
Victor 5.0 EFI aluminium
intake manifold is for
non-emission, racing
applications. Intended for
engines modified to produce
400 to 540+ horsepower, this
intake manifold features
shorter and larger runners
for power to 7500 rpm.
Runners are 11.5″ long and
50% larger in area than
Performer 5.0 # ED3821
runners. The base features an
air-gap design and will
accept stock or stock
replacement fuel rails. The
upper manifold will clear
tall valve covers and large
fuel pressure regulators. The
upper and plenum cover are
powder-coated light titanium
grey The base is as-cast and
not powder-coated. Designed
to work with Edelbrock Victor
Jr. or Victor cylinder heads.
Edelbrock 75mm throttle body
is recommended for most
applications with no EGR
spacer. Larger injectors will
be needed depending upon
power levels. 1994-95
Mustangs require conversion
to ’87-93 inlet systems.
Manifold includes throttle
cable bracket. Made in USA
