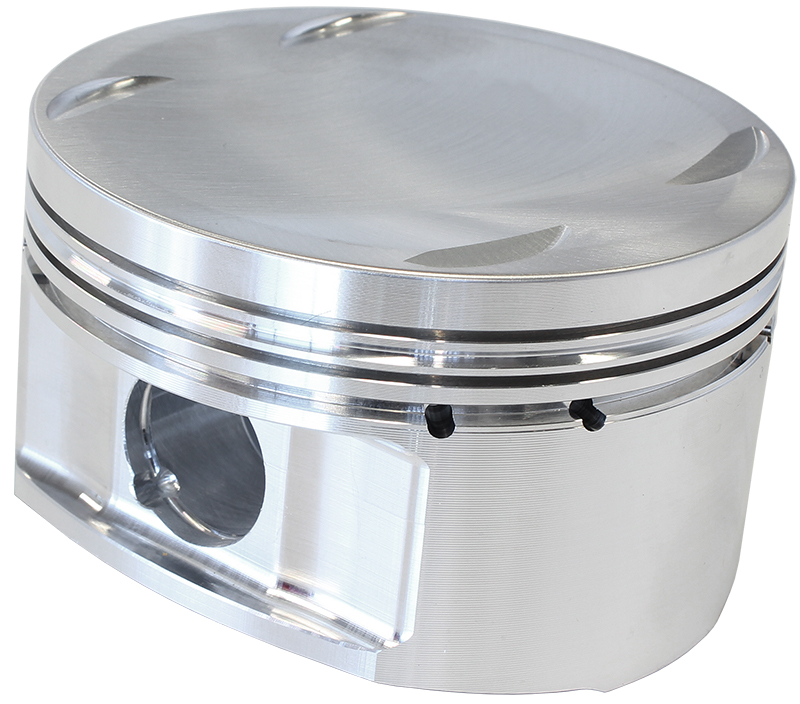

VR38DETT 95.5mm PISTONS -7.2cc9.0:1, 165mm ROD, 34.3mm CH

Description

This piston set is forged
from 2618 T6 high tensile
strength aluminium and is
engineered for extreme
applications. Features include
Full Round
Skirt

Includes:

• .905 x
  2.500 straight wall Nickel
  Carbon steel wrist
  pin
• 1.2 x 1.2 x 2.5mm
  rings
• Pin
  fitting
• Wire
  locks

Specifications:

• Part #:
  J297681
• Bore:
  95.5mm
• Oversize:
  STD
• Stroke:
  88.4mm
• Rod Length:
  165mm
• Compression
  Height: 34.3mm
• Chamber
  Volume:
  64.25cc
• Compression
  Ratio with .030″ Head Gasket:
  9.0:1
• Dome Volume:
  -7.2cc
• Gram Weight:
  421
• Footnote: Accepts
  Turbo and
  Nitrous
• Skirt: Full
  Round Skirt
• Included
  Ring Set:
  JC2806-3760

With
over 60 years of experience,
JE Pistons is the leader in
high performance forged
pistons. We’ve built a
reputation that the
competition can only follow.
JE has a history of
manufacturing the highest
quality pistons and components
that professional engine
builders, race teams, and high
performance enthusiasts trust
and rely on.

The top
engine builders in NASCAR,
ALMS, NHRA, AMA Supercross and
others choose JE Pistons over
any other brand. For over 60
years, JE’s position at the
forefront of performance
piston manufacturing has been
a result of continuous
research and development of
unique materials, piston
designs and technologies.
Utilising State-Of-The-Art CNC
machines for manufacturing
along with purpose-designed
forgings, JE is able to
maintain exacting
specifications on each and
every piston and hold
tolerances to millionths of an
inch. Also available from JE
is industry-leading processes
like Ultra Crown, a Digital
Three Dimensional piston crown
machining process and Finite
Element Analysis (FEA). FEA is
a computer processwhereby
stress and fatigue are tested
on a computer model before it
goes into production. JE is
the only performance piston
manufacturer to earn the
QS-9000 quality standard which
confirms that JE provides
customers the highest
standards in quality control.
In addition, we also have
State-Of-The-Art inspection
equipment and testing
equipment which enables us to
constantly bring you, the
customer, the very latest in
piston design
configurations.
