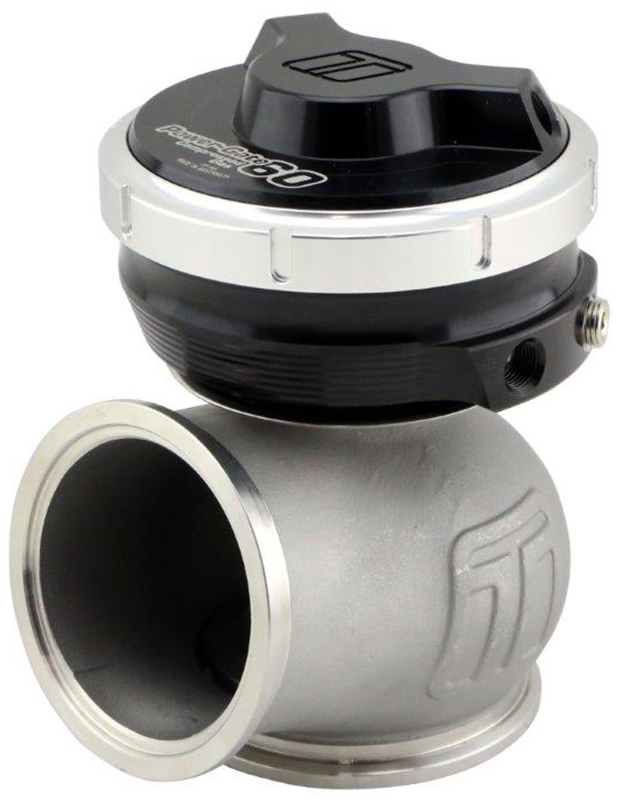

WG60CG GENV POWERGATE 60 5PSI COMPRESSED GAS BLACK

Description

The GenV PowerGate60 Compressed Gas external wastegate is a cost effective, high performing 60mm external wastegate designed for control strategies that actively bias the top chamber with high pressure for large boost bandwidth operation, such as CO2 drag racing, or compressed air WRC applications.
The Compressed Gas range feature an inverted diaphragm to maximise diaphragm life from high pressure CO2 or compressed air systems. The GenV provides extensive user configurability, world leading extended thermal performance, fatigue resistance and best in class flow performance for optimum control and longevity.
The GenV External Wastegate from Turbosmart was a ground up rework of a classic and the only feature that rolled over from the Gen4 range was the mounting orientation. CFD optimized and validated in-house for maximum flow and thermal management, the GenV range has more features, options and performance than any other gate like it.

A direct fit upgrade to all Gen4 Turbosmart wastegates and feature our unique collar-locking system, variable actuator cap and base for easy, 360 degree optional routing of reference hoses, strap-type V-band clamps, optional liquid-cooling provision, 1/8″ NPT reference ports and are provided with the full range of available springs.
Features

– Class Leading, Thermal Performance
– Class Leading, CFD & Bench Validated Flow Performance
– Class Leading Fatigue Resistance
– Nitronic 60 Valve Guide & High Temp 347 SS Body
– 17/7 PH Stainless Steel Springs
– Liquid Actuator Cooling Option
– Strap Type V-band clamps
– User Adjustable Actuator Position
– Modular Design for Actuator Interchangeability
– 1/8″ NPT Size
