WILWOOD 3 PEDAL FLOOR MOUNT ASSEMBLY W/O THROTTLE LINK
WILWOOD 3 PEDAL FLOOR MOUNT ASSEMBLY W/O THROTTLE LINK
$759.09
Description

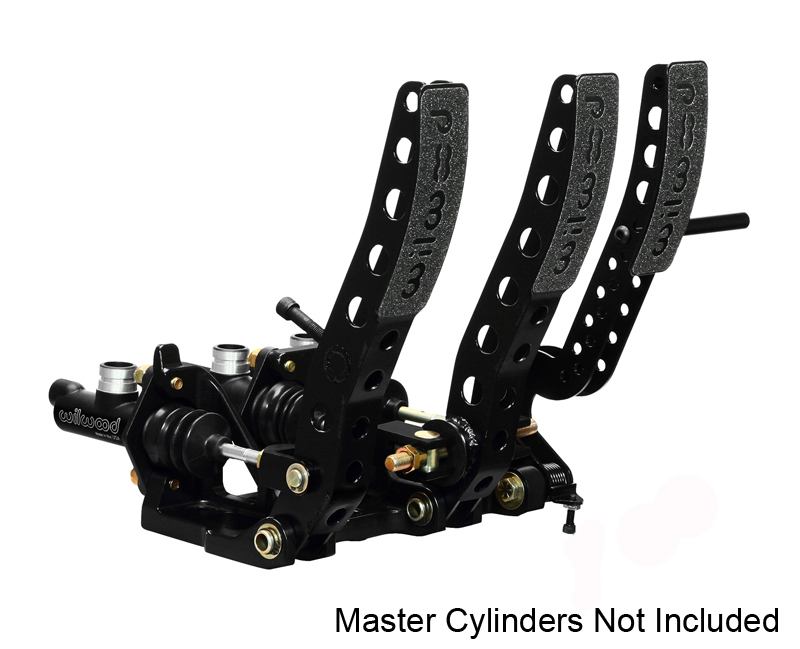

Wilwood’s new floor mountpedal assembly has a brake / clutch / throttle triple pedaldesign. There are three individual fabricated steel pedals with non-slip pedal pads to control brake, clutch and throttle. Pedal assembly part number 340-12410 is for rear engine cars and does not include a throttle bell crank and linkage. This unit features an aluminum frame with strong lightweight fabricated steel pedal arms. The frame and the pedal arms have a black e-coat finish forprotection and an attractive appearance. Also included withthe pedal assembly are mounting studs, clevises, and balance bar assembly that is designed to provide smooth andaccurate settings of the brakepedal bias. The balance bar can be set and locked down with the jam nut, or attached to a remote cable for quick on-track adjustments. The pedal assembly provides a 5.25to 1 nominal ratio.
Additional information
| Weight | 3.6000 kg |
|---|---|
| Dimensions | 26.40 × 14.80 × 31.40 cm |
| Category list | Accelerator Pedals, Body, Exterior & Interior Accessories, Interior |
| Brand | Wilwood |
