WILWOOD BRAKE PEDAL 6:1 FLOOR MOUNT DUAL MASTER CYL

Description

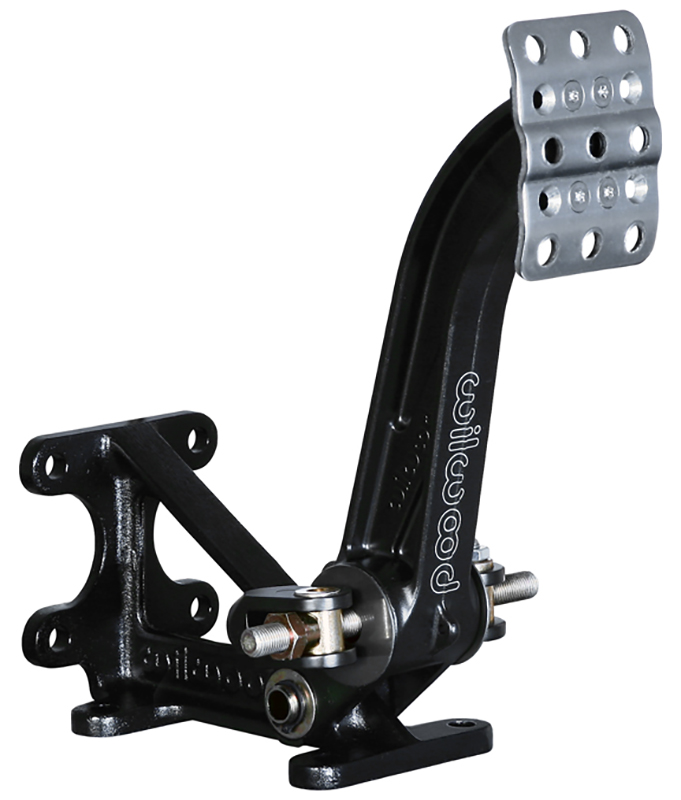

This floor mount pedal assembly mounts two single outlet brake master cylinders in a forward position outside the firewall. It features a lightweight aluminum frame, with a high strength reinforced I-Beam style forged6:1 ratio pedal arm. The non-skid waffled pedal pad canbe laterally adjusted for driver preference or clearanceas necessary. The balance bar incorporates a positive detentstop every full turn to maintain adjustment position and driver awareness. A pin and clevis pushrod attachment system provides highest possible degree of misalignment angle for bind free operation through the entire range of travel. The balance bar can be locked in place with the included jam nut, or used with an optional remote cable for quick on-track adjustments. This pedal accepts any Wilwood vertical mount flange single outlet master cylinders that are ordered separately by style and bore size.
