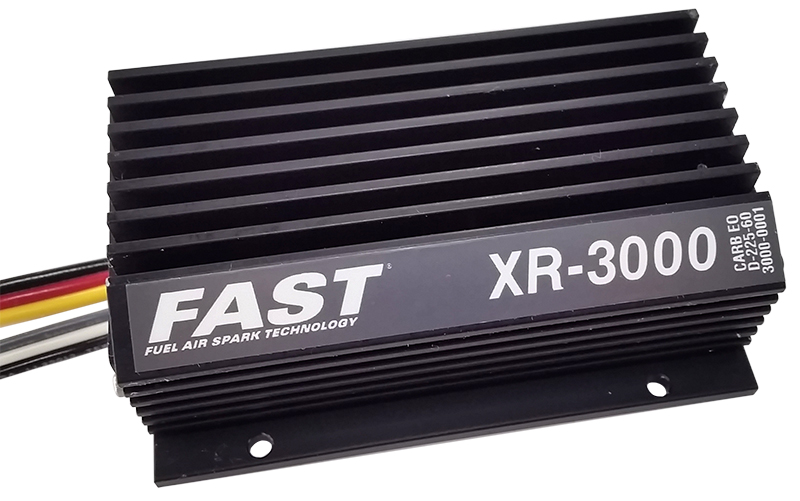

XR3000 IGNITION CONVERSION KITNIPPON DENSO DIST 4,6,8, OPUS
XR3000 IGNITION CONVERSION KITNIPPON DENSO DIST 4,6,8, OPUS
$369.22
Description
Operating voltage
6 to 18 volts, reverse polarity protected,negative ground. Notcompatible with 6 volt electrical systems as these may drop below 4 volts during cranking.
Coil current limit
4.5 amps internal short circuit protection limit set at 7 amps.
RPM range
6,500 RPM
Primary voltage output
400volts (inductive discharge)
Primary energy output
90 millijoules with PS91 coil.
Peakspark gap current
100 milliamps with PS91 coil.
Spark duration
2800 microseconds at 2,000 RPM
Dimensions
5″L x 3″Wx 1-1/2″H, 1-1/2 lbs.
Additional information
| Weight | 0.5380 kg |
|---|---|
| Dimensions | 15.00 × 10.00 × 10.00 cm |
| Category list | |
| Brand | Fast |
