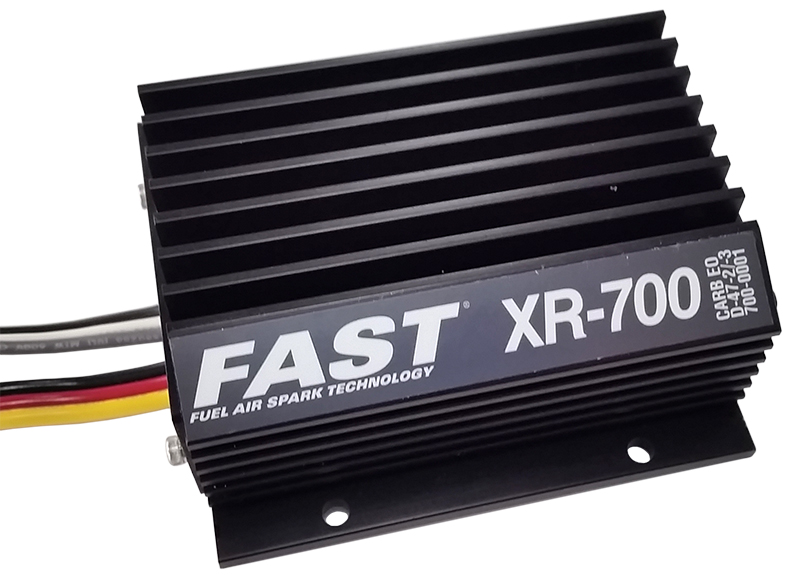

XR700 IGNITION CONV KIT LUCAS 4,6,8,12 CYL OPUS

Description

Operating
voltage

• 6
  to 18 volts, reverse polarity
  protected, negative or
  positive ground. Not
  compatible with 6 volt
  electrical systems as these
  may drop below 4 volts during
  cranking

Coil current
limit

• 4.5
  amps (externally limited by
  ballast resistor on XR700).
  Internal short circuit
  protection limit set at 7
  amps

RPM
range

• 6,000 RPM (RPM range higher
  for 4 and 6 cylinder
  engines)

P
rimary voltage
output

• 400
  volts (inductive
  discharge)

Primary energy
output

• 60
  millijoules with PS20/40
  coil

Peak
spark gap
current

• 60
  milliamps with PS20/40
  coil

Spark
duration

• 300 microseconds at 6,000
  RPM

Dimensions

• 3-1/2″L x
  3″W x 1-1/2″H, 1 lb
