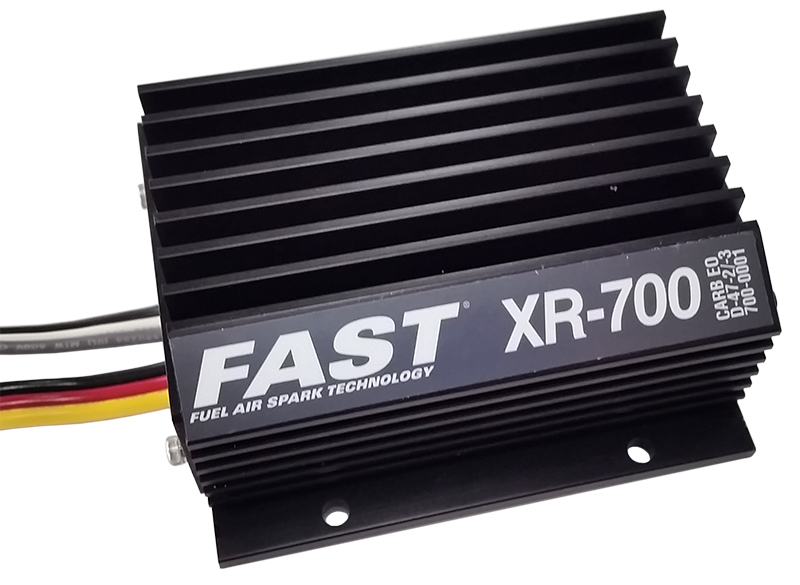

XR700 IGNITION CONVERSION KIT BOSCH,LUCAS,JAP 4,6 & 8 CYL
XR700 IGNITION CONVERSION KIT BOSCH,LUCAS,JAP 4,6 & 8 CYL
$288.61
Description
Operating voltage
6 to 18 volts, reverse polarity protected, negative or positive ground. Not compatible with 6 volt electrical systems as these may drop below 4 volts during cranking
Coil current limit
4.5 amps (externally limited by ballast resistor on XR700). Internal short circuit protection limit set at 7 amps
RPM range
6,000 RPM (RPM range higher for 4 and 6 cylinder engines)
Primary voltage output
400volts (inductive discharge)
Primary energy output
60 millijoules with PS20/40 coil
Peak spark gap current
60milliamps with PS20/40 coil
Sparkduration
300 microseconds at 6,000 RPM
Dimensions
3-1/2″L x3″W x 1-1/2″H, 1 lb
Additional information
| Weight | 0.5380 kg |
|---|---|
| Dimensions | 15.00 × 10.00 × 10.00 cm |
| Category list | |
| Brand | Fast |
