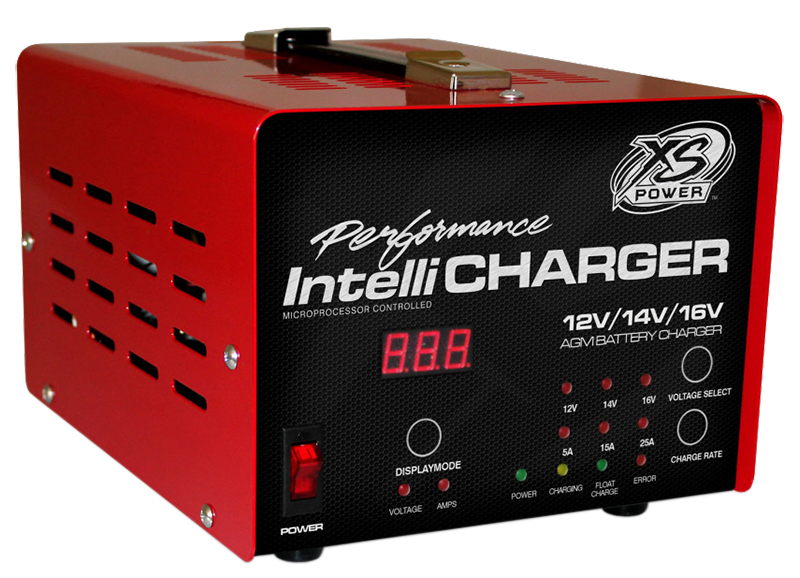

XS POWER 12/16V BATTERY INTELLICHARGER, 5A, 15A, 25A. 240V

Description

The IntelliCHARGER is an
advanced battery charger
designed specifically for high
performance leadacid
batteries. This charger
combines the reliability of a
transformer and MOSFET
rectifier assembly with an
advanced microprocessor
control board to create a
battery charger that can
rapidly and safely recharge
12V, 14V & 16V flooded,
maintenance free, deep cycle,
gel-cell, and AGM (Absorbed
Glass Mat) batteries in
several sizes. The front panel
switches, LED indicators, and
charge meter make the
IntelliCHARGER very easy to
use.

Multi-Stage
Charging
At the
heart of the technology in the
XS Power IntelliCHARGER are
the three distinct charging
stages. During the first
stage, called “Bulk” charging,
the current is fixed according
to the charge rate switch on
the front panel and the
voltage is allowed to float.
During this stage, 80% of the
battery’s capacity is
restored. When the battery’s
cell voltage comes up to the
correct level, the second
stage called “Absorption”
charging is engaged. During
this stage the voltage is
fixed according to the battery
type and voltage switches on
the front panel and the
current is allowed to float.
The battery is brought to
100%during this stage and the
cells are equalized. The third
stage is float charging.
During this stage the voltage
and current are reduced to a
level that will maintain the
battery indefinitely. Several
microprocessors are used to
tightly control the entire
process. This is the same
technique that battery
manufacturers recommend and
use in the production of new
batteries and it is the
fastest and safest technique
for battery
charging.

Compatible With All 12V, 14V
&16V AGM and Gel-Cell
Batteries
Lead-acid batteries have
different charging
requirements based on their
specific design. Flooded and
maintenance free batteries
require a higher voltage per
cell than do sealed valve
regulated types such as AGM
and gel-cell batteries.
Overcharging will reduce the
life of any battery as sealed
valve regulated batteries are
especially sensitive to high
charging voltages and
overcharging. Some sealed
valve regulated batteries are
more sensitive to overcharging
than others. If in doubt as to
which battery setting to use
for your application, contact
the manufacturer of the
battery being charged.
Overcharging an AGM or
gel-cell battery will cause
permanent
damage.

Output
Display
The
battery charger features a
digital output dispaly
allowing the user to monitor
the volts and
amps.

Voltage
Monitoring
The
battery’s terminal voltage is
measured every five minutes by
the on-board microprocessors
and this information is
analyzed in addition to the
elapsed time to dynamically
control the Battery Charger
for optimum charging
performance.

Automatic Computer
Analysis/Auto
Shutdown
The
microprocessors will analyze
the battery when connected. If
the battery’s voltage is below
4V or the battery will not
come up to the correct voltage
in a ten-hour period the
charger will automatically
shut off.

UL
Approved Battery
Cables
Six feet
of durable battery cables are
provided that are resistant to
cuts and abrasion. The copper
plated battery clamps are
compact and custom designed
easy connections. All clamp
connections are soldered for
maximum current
flow.

Internal
Cooling Fan
A
cooling fan automatically
operates during charging to
keep the transformer and other
internal components at a
constant safe temperature.
