XXX CH-X DRIVE LINE RESTRAINT – SAFETY DEVICE SYSTEM

Description

Complete Driveline
Restraint System designed to
restrain and tether torque
tube and driveline. It’s clean
design makes it light,
inexpensive, easily installed,
does not interfere with
routine maintenance and does
not affect chassis
flex/performance while
protecting your legs and feet
from the torque
tube.

Rear driveline
hoop contains the torque tube
should it break out of the
rear end. In conjunction with
the (standard) front torque
tube hoop prevents lateral
movement of the torque tube to
keep it away from your lower
leg and feet. The rear hoop is
spud mounted so does not
affect chassis flex or
performance. It’s positioned
under the seat to not inhibit
any of your normal maintenance
routine.

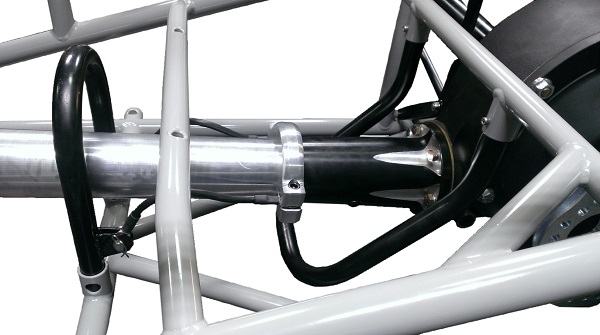

The CNC’ed
collar and wire cables that
attach to the front torque
tube hoop prevent the torque
tube from falling out of the
torque ball, further
containing it between your
legs. Each cable has a 4,000
pound breaking strength, and
is attached via a pin and rue
clip to the front hoop for
easy and quick removal when
needed.

Spuds Stock on
ALL new XXX Chassis. System is
adaptable to most chassis with
the addition of 2 spuds welded
to butt bar. (Torque tube hoop
must be vertical and chassis
must have short floor pan
design.)

Complete System
Includes:

• (1) Rear Torque Tube
  Hoop
• (1) Front Torque
  Tube Hoop
• (1) CNC’ed
  Torque Tube Collar
• (2)
  Tethers
• (2) Heavy duty
  rue clips and pins
